Large 3-3/8” cutting capacity at 90° with convenient guide rail compatible base without the need for an adapter
Makita-built brushless motor delivers 4,000 RPM for faster cutting performance
Constant speed control automatically applies additional power under load for optimum performance
XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions

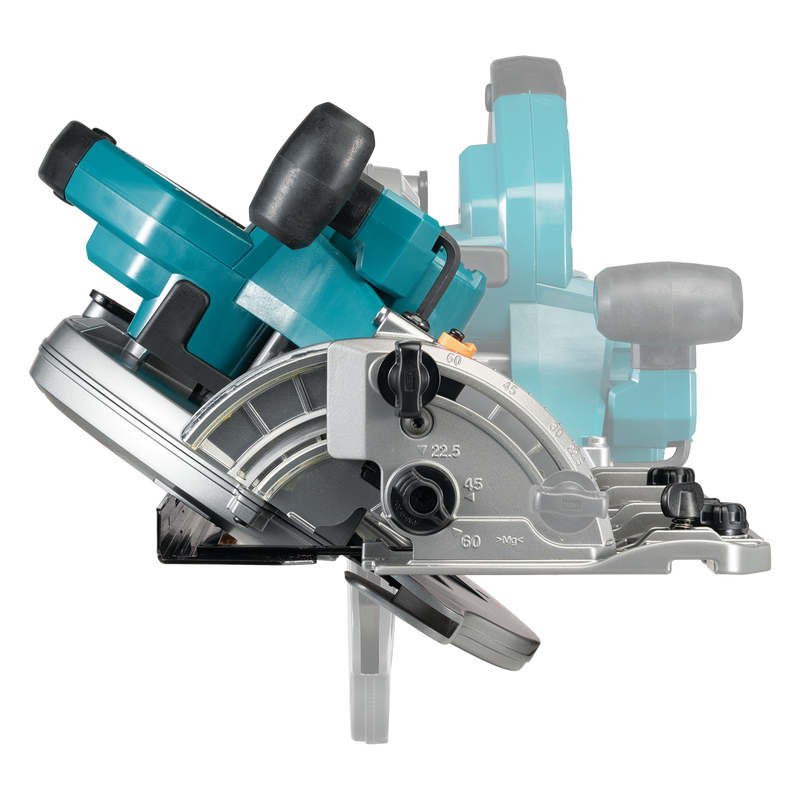

Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°

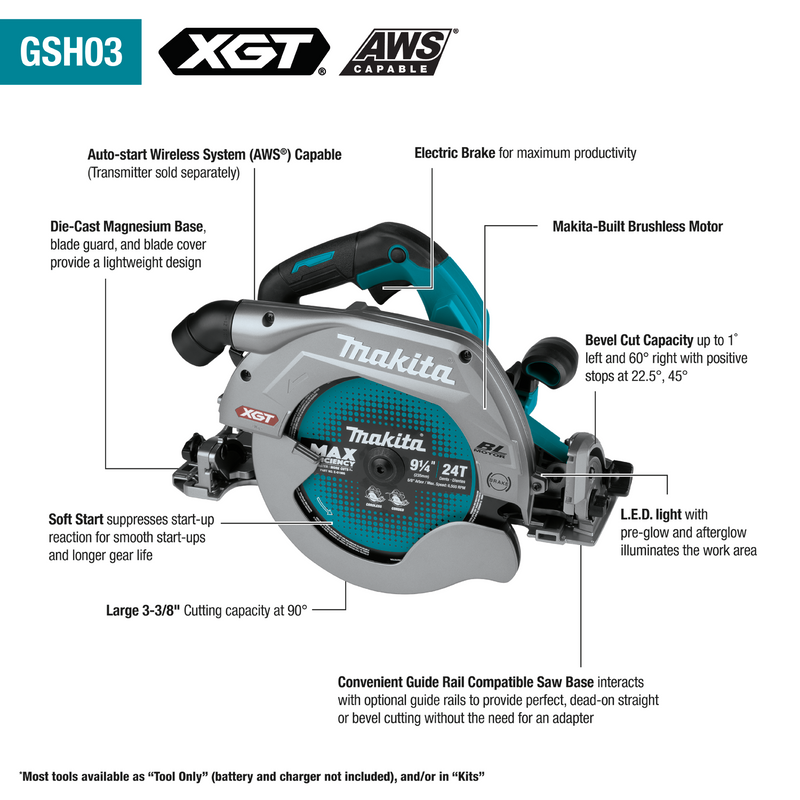

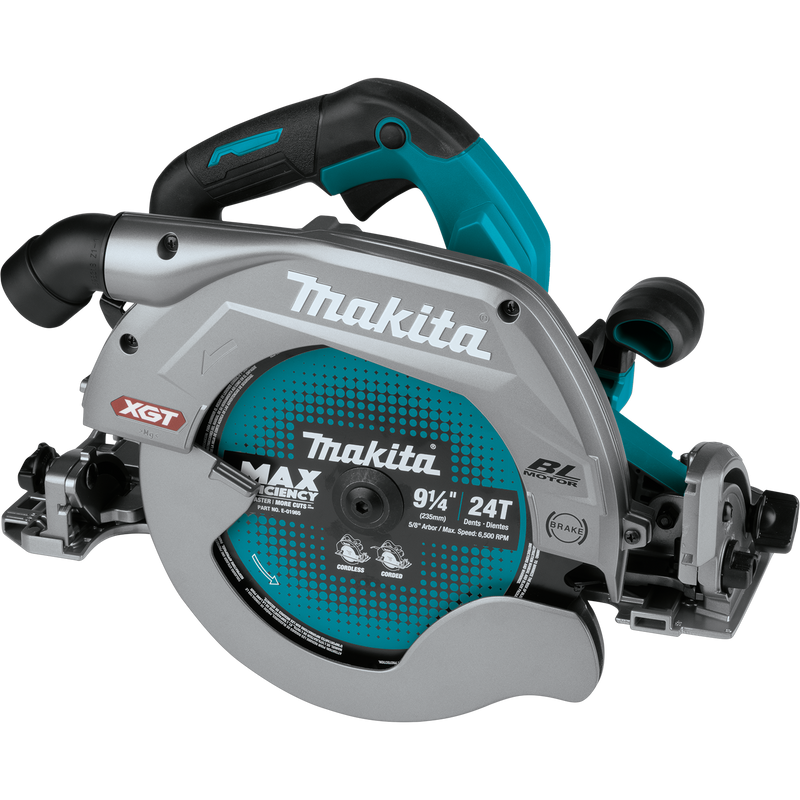

The 40V max XGT® Brushless 9-1/4" Circular Saw with Guide Rail Compatible Base combines efficient cutting with the convenience of guide rail compatibility. The Makita-built brushless motor delivers 4,000 RPM for fast cutting performance, with constant speed control that automatically applies additional power under load for optimum performance. It offers 3-3/8” of cutting capacity at 90° with bevel cut capacity up to 1° left and 60° right with positive stops at 22.5° and 45°. It features a die-cast magnesium base, blade guard, and blade cover for lower weight at only 10.4 lbs. with battery (battery sold separately).
Makita-built brushless motor delivers 4,000 RPM for faster cutting performance
Constant speed control automatically applies additional power under load for optimum performance
XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions
Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°
Large 3-3/8" cutting capacity at 90°

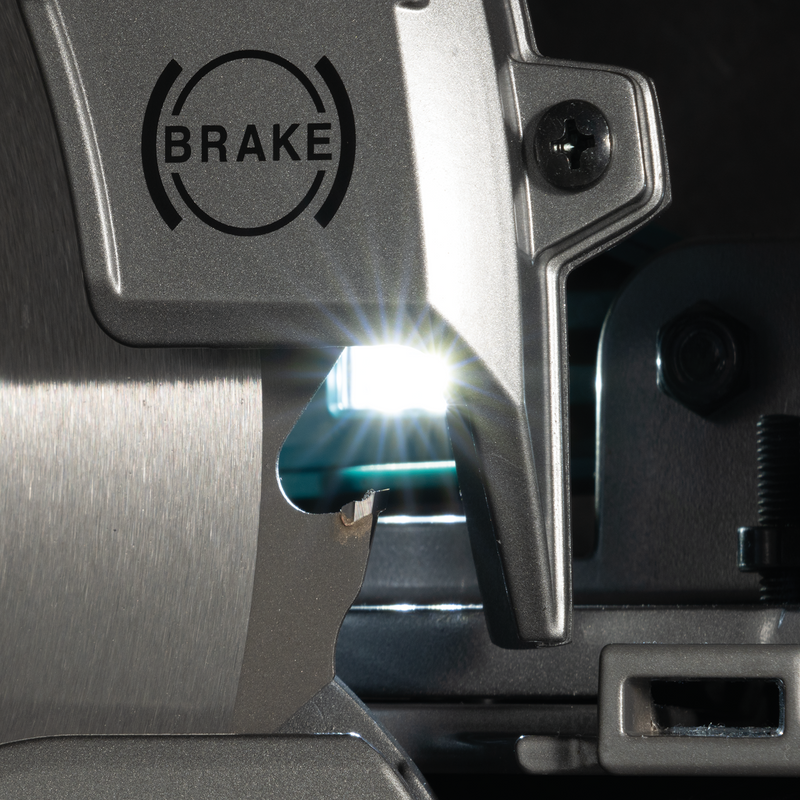

Electric brake for maximum productivity
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
L.E.D. light with preglow and afterglow illuminates the work area
Compact and ergonomic design at only 16-1/4" long

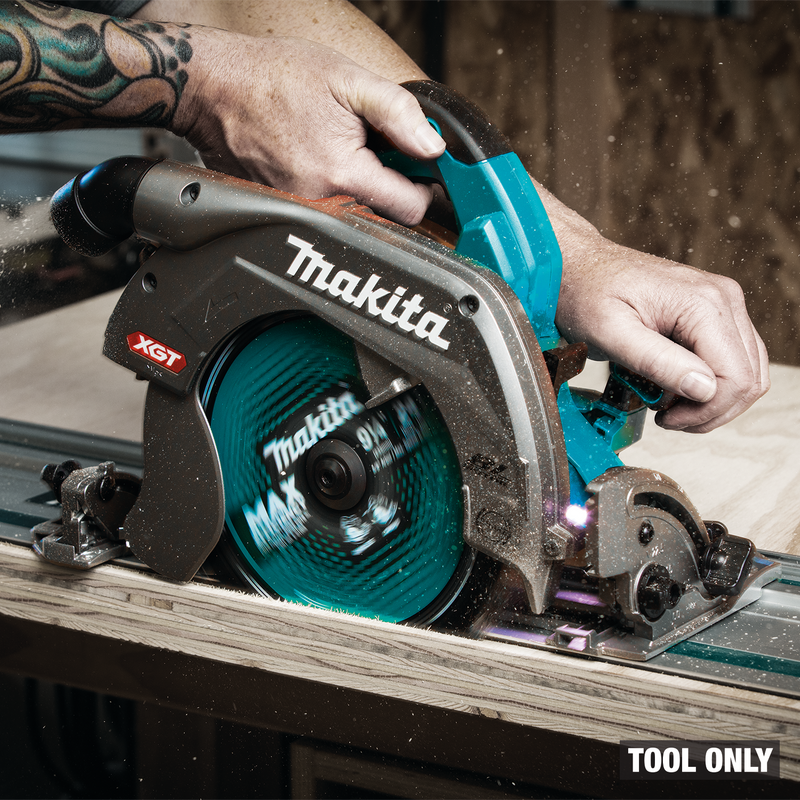

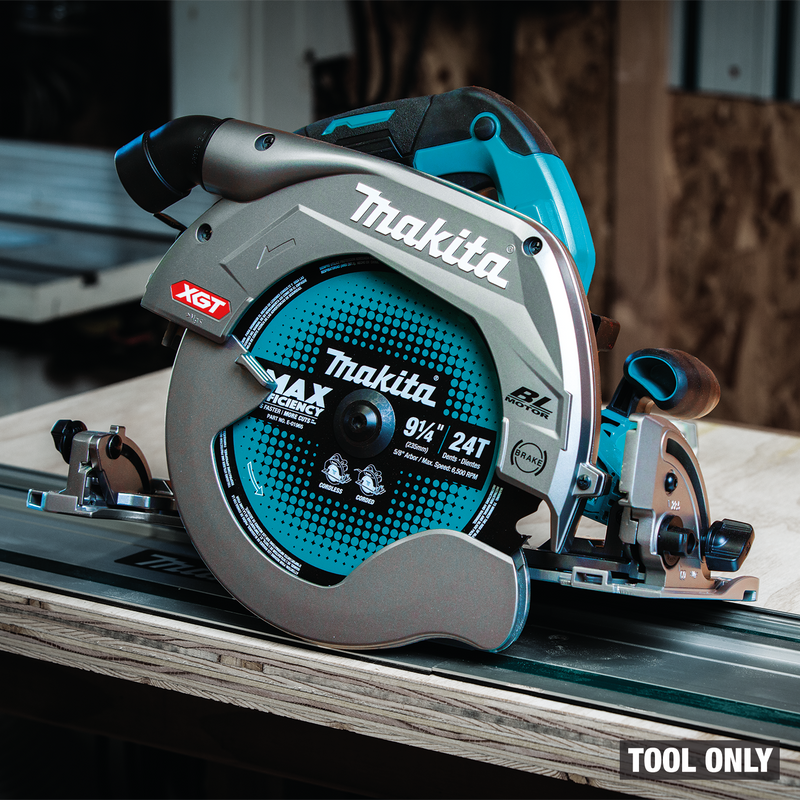

Convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter
Die-cast magnesium base, blade guard, and blade cover provide a lightweight design; weighs only 10.4 lbs. with battery (battery not included)
Auto-start Wireless System (AWS®) uses Bluetooth technology to power wireless on-off communication between the tool and dust extractor
AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
Onboard hex wrench for convenience
The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (battery not included)
The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
Only use genuine Makita® Batteries and Chargers
3-year limited warranty
Blade Diameter : 9-1/4"
No Load Speed : 4,000 RPM
Max. Cutting Capacity (at 90°) : 3-3/8"
Max. Cutting Capacity (at 45°) : 2-3/8"
Max. Cutting Capacity (at 60°) : 1-3/4"
Arbor : 5/8"
Net Weight (with battery, sold separately) : 11.85 lbs.
Automatic-start Wireless System (AWS®) : Capable (transmitter sold separately)
Power Type : Cordless
System : 40V max XGT®
Overall Length : 16-1/4"
Packaged Depth (in) : 10.98"
Packaged Height (in) : 14.13"
Packaged Width (in) : 19.45"
Shipping Weight : 16.16 lbs.
UPC Code : 088381-758185
