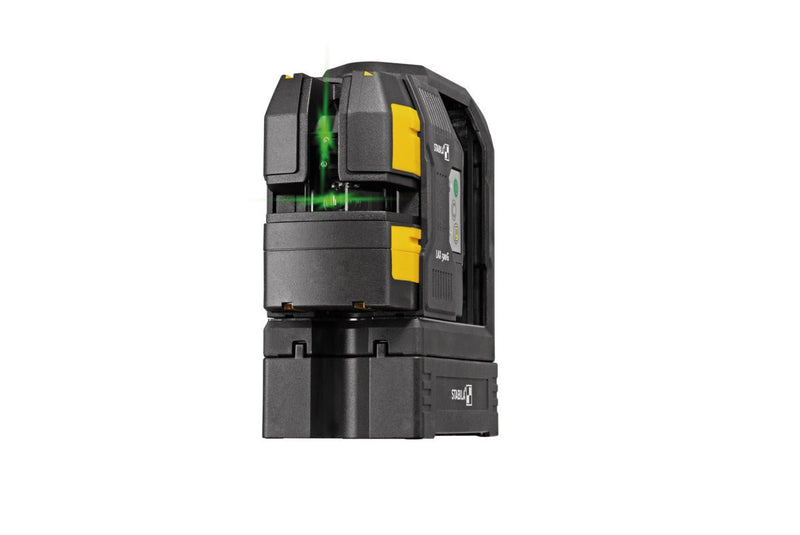

STABILA (03520) Cross-line laser LAX 500 G, 12V, 7-Piece System

SKU 3520
Out of stock
Sold out
Original price - Original price
Original price
$530.00
-
Current price $530.00
by Stabila

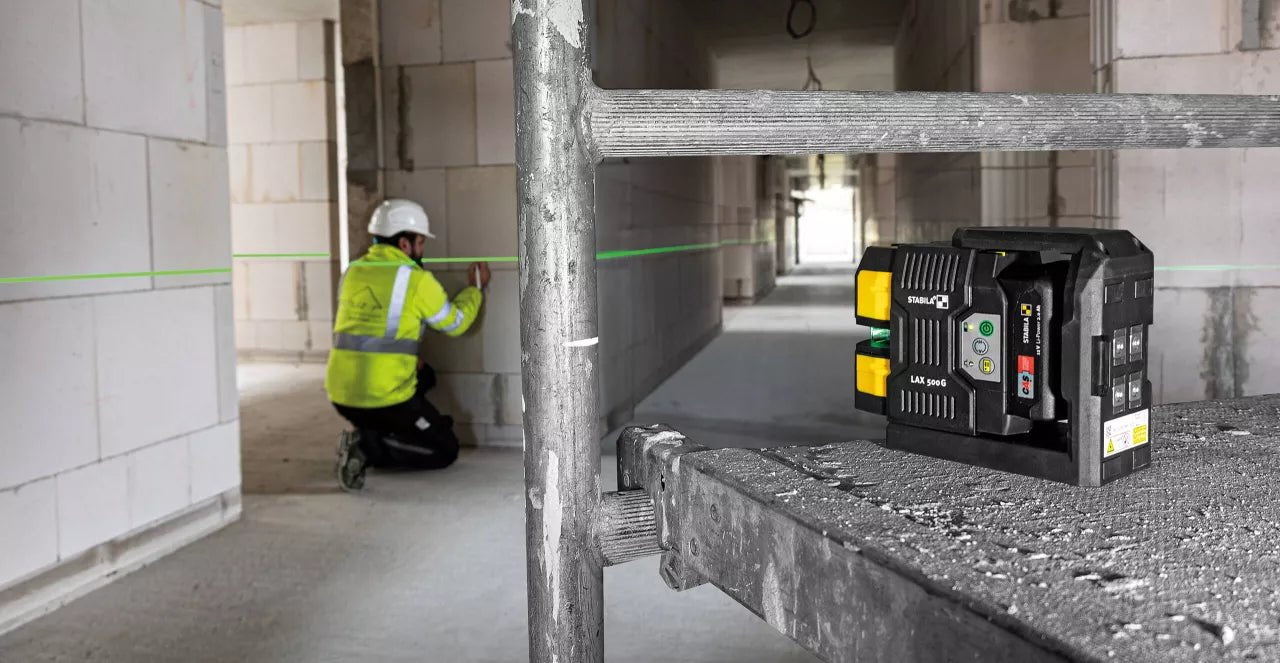

  • Discover the powerful LAX 500 G, the cross-line laser with plumb dots and modern rechargeable battery technology.

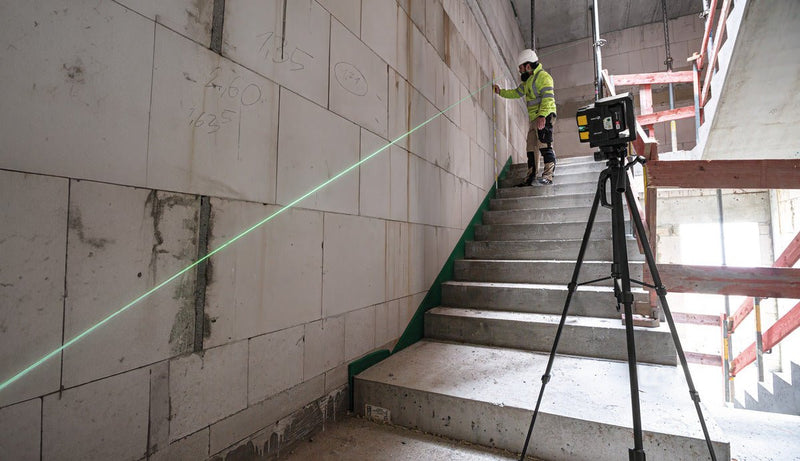

  • Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130 ft/40 m.

  • In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications.

  • The laser optics are optimally protected by the proctective housing. STABILA – simply work efficiently!

Laser safety advice

Interested in Bulk? Request a Quote Here

STABILA (03520) Cross-line laser LAX 500 G, 12V, 7-Piece System

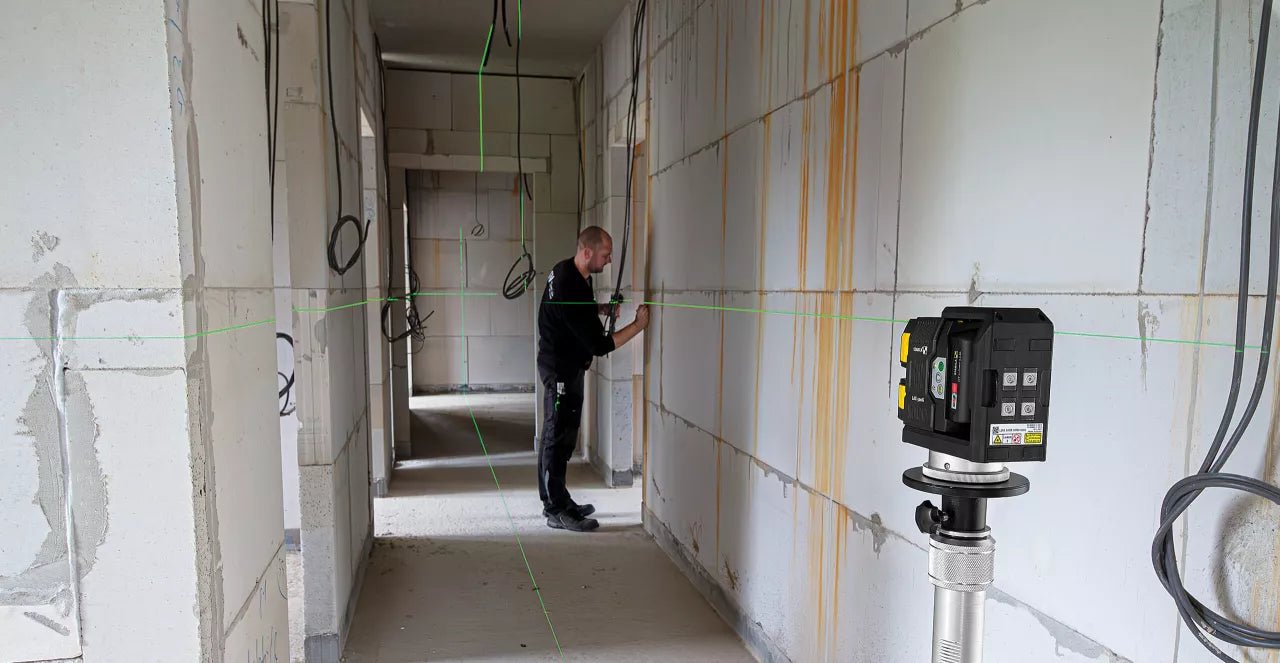

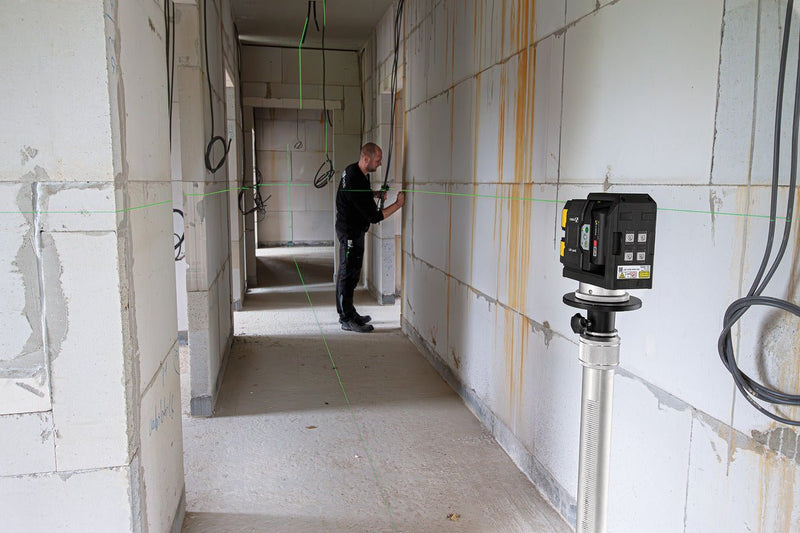

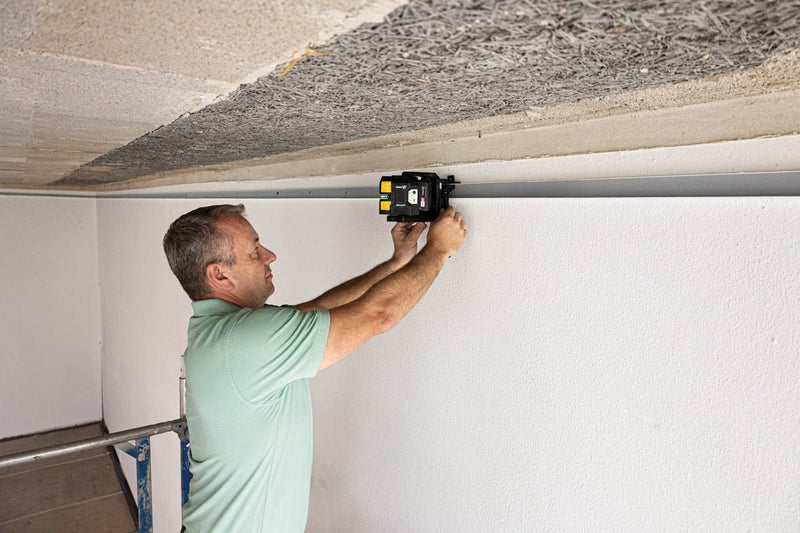

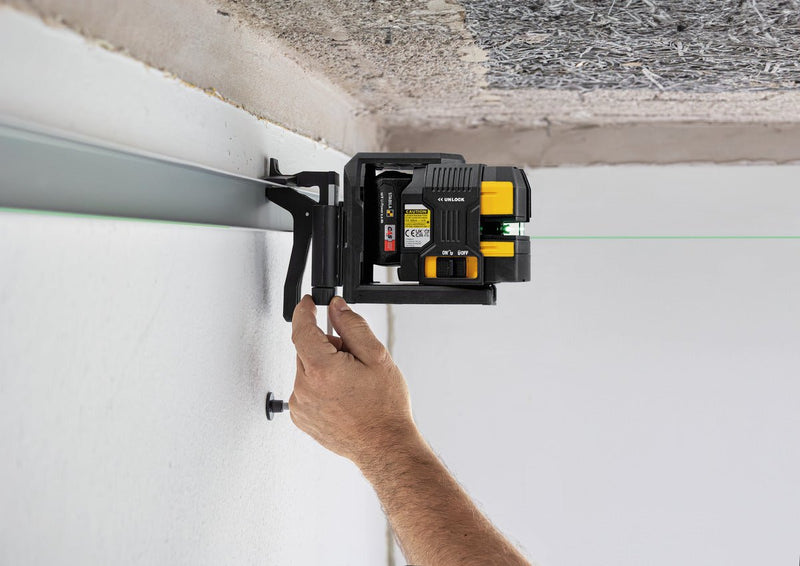

In drywall construction: Suspend ceilings together with the wall bracket, transfer layout from the floor to the ceiling, align profile rails, install partitions. For tiling: Lay out the tiling, align and lay floor and wall tiles. In electrical installation work: Mark switches and sockets, align cable ducts horizontally and vertically, align and install lighting. For installation work: Align pipe clamps horizontally and vertically, route cables and heating pipes, install radiators and sanitary facilities. For carpentry and joining work: Assemble kitchen cabinets, align worktops. In window construction: Level window heights.



CA Prop 65 Warnings

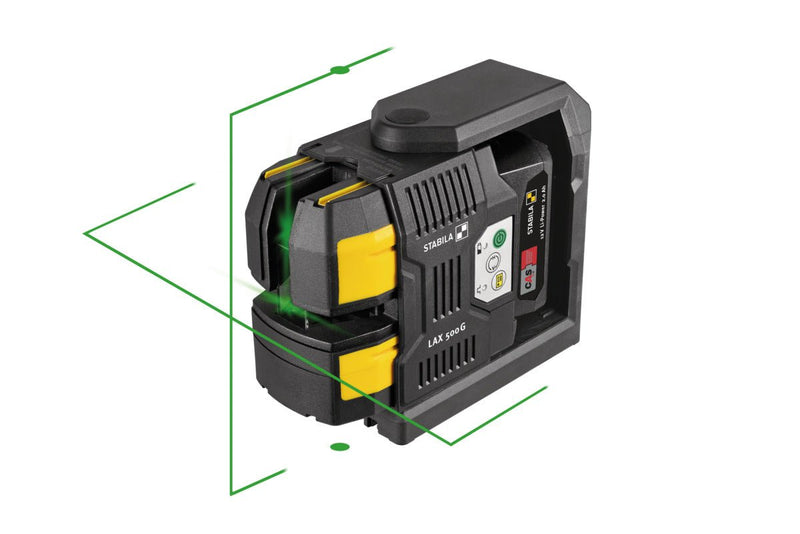

  • 12 V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes.

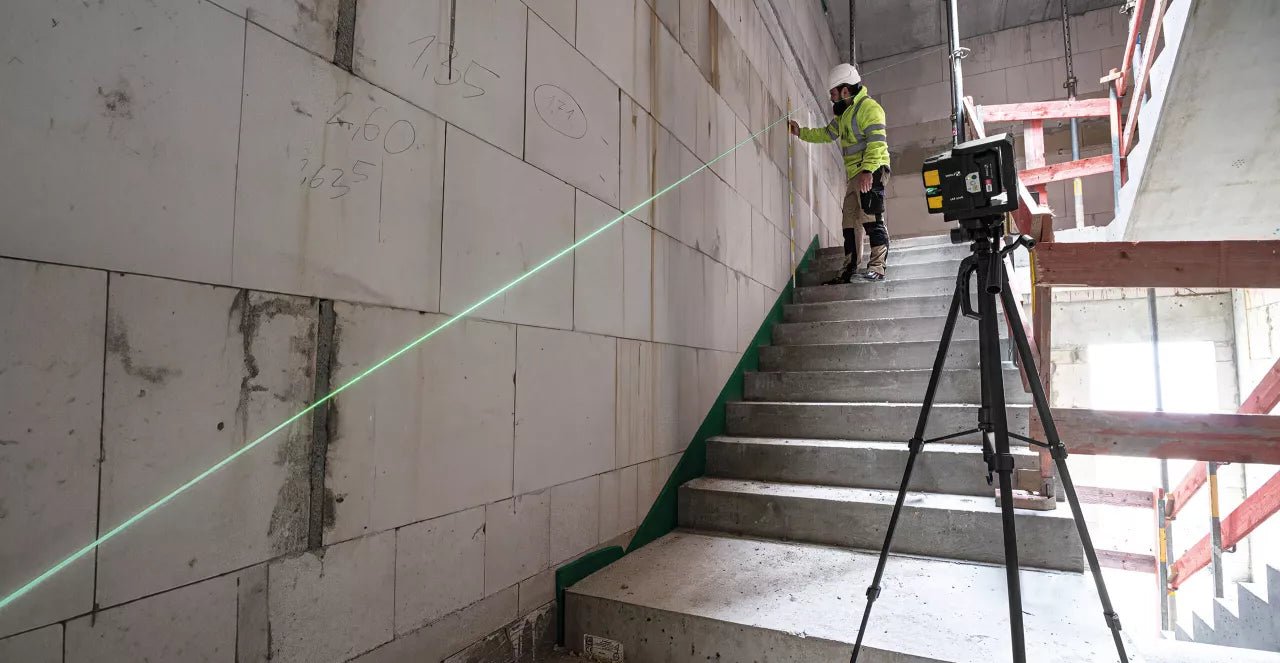

  • GREENBEAM technology: direct work on sharp and perfectly visible lines – up to 130 ft/40 m away.

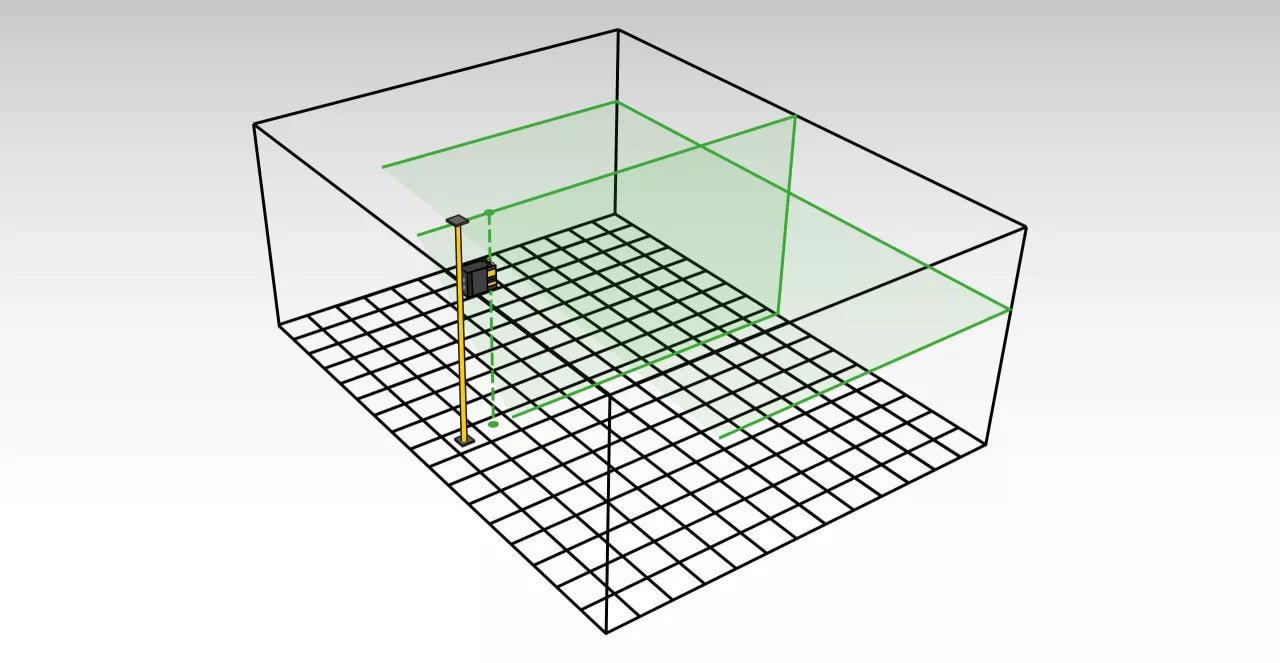

  • High-performance diodes: Vertical line covers almost the entire room.
  • Manual mode: Positioning the laser at any angle with a locked pendulum mechanism.
  • Switchable pulse-modulated lines: compatible for working with line receivers (available as an option).

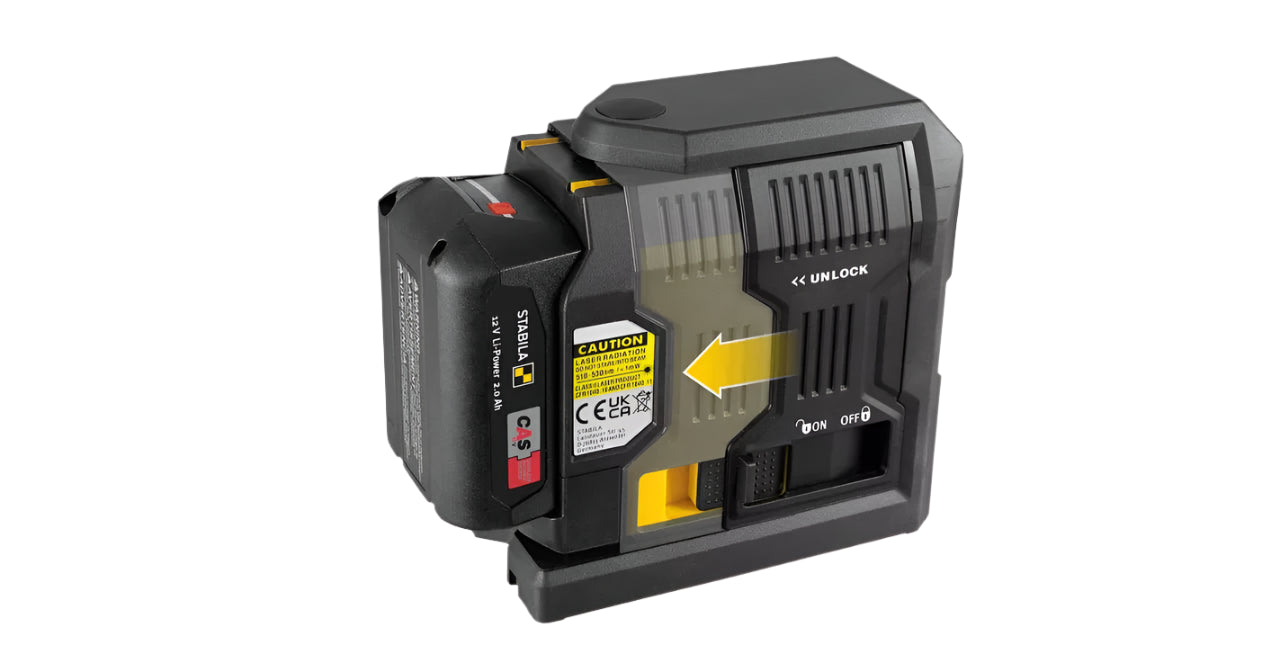

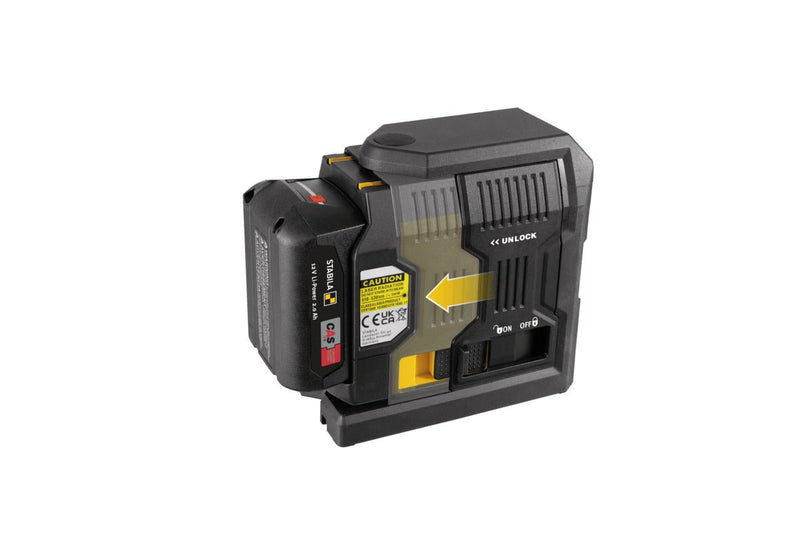

  • Long operating time: 12 V LI-POWER 2.0 Ah CAS rechargeable battery for up to 20 hours of use.
  • Short charging times: quick recharging in max. 45 minutes.
  • Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage.

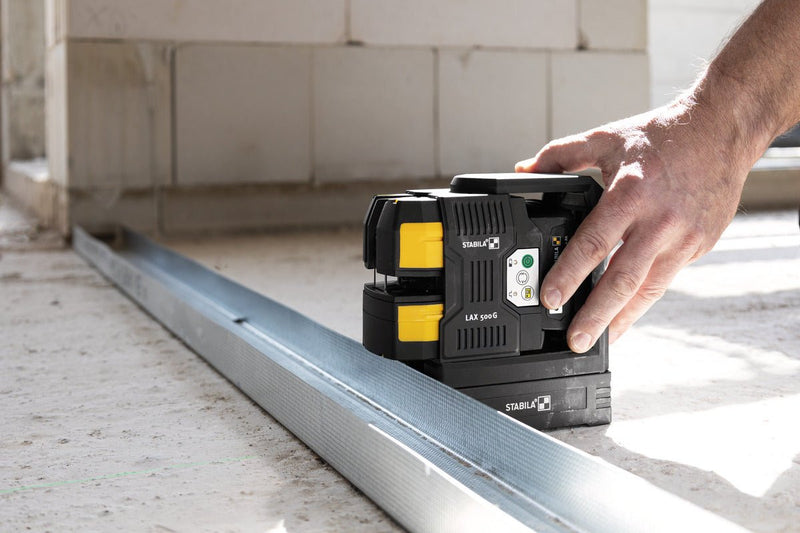

  • Removeable laser base allows the ability to work over bottom plate or base track.

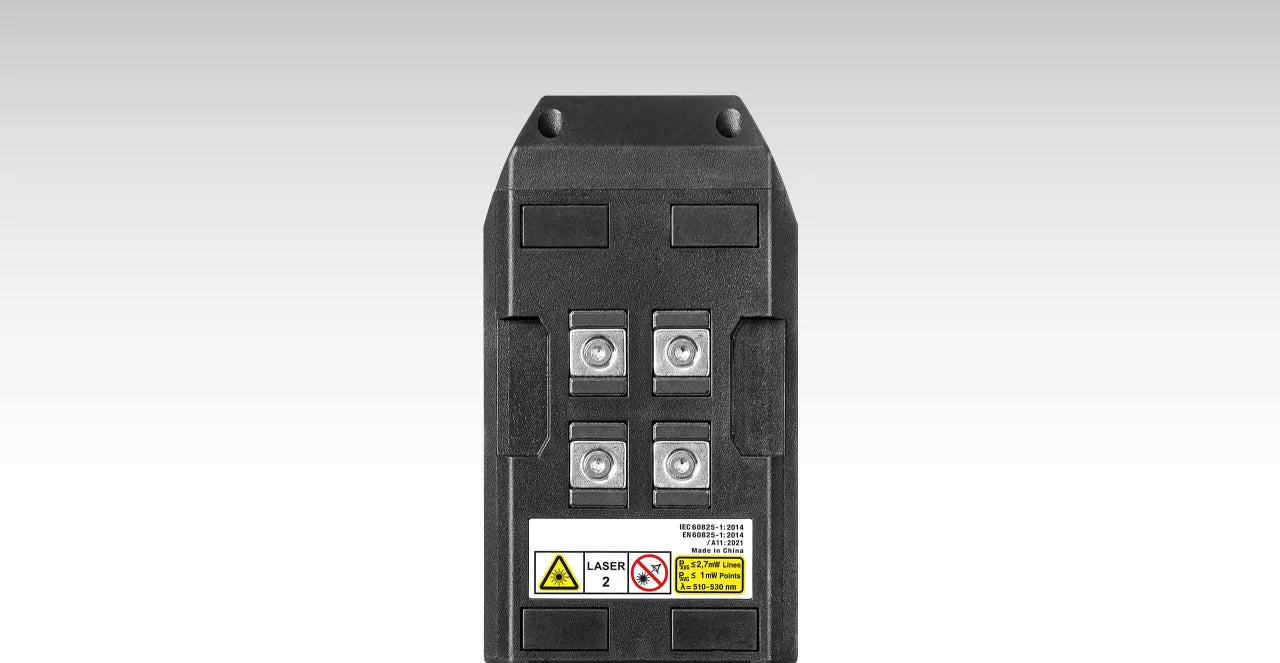

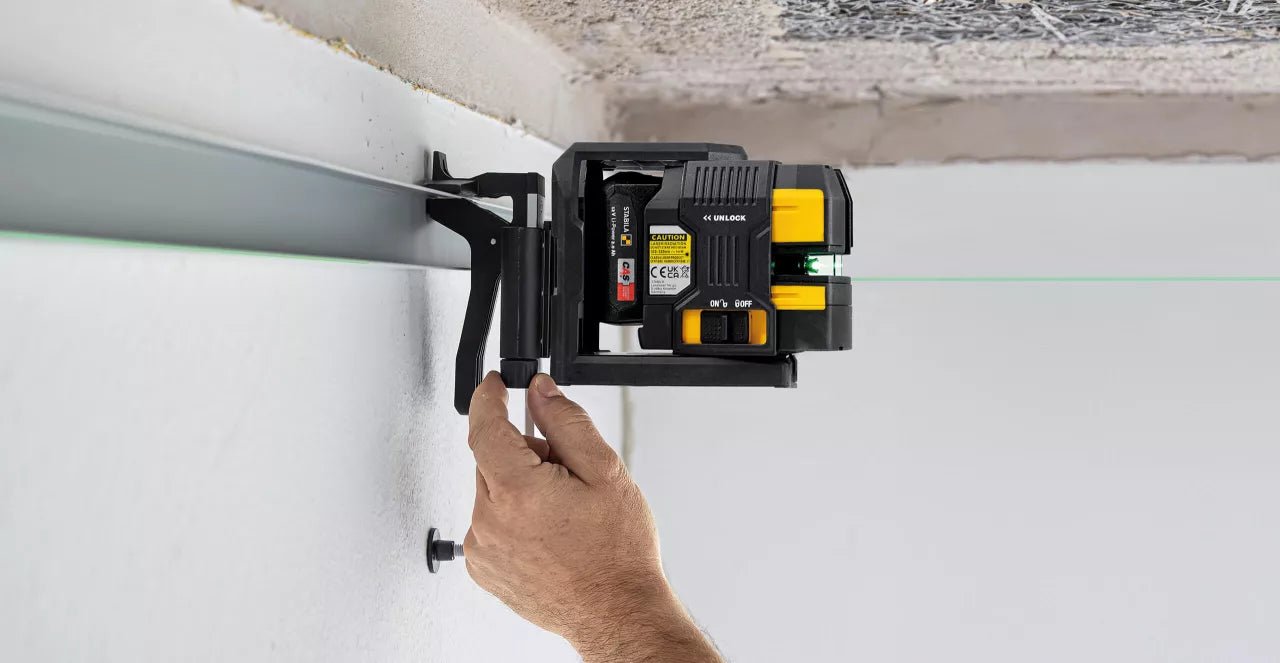

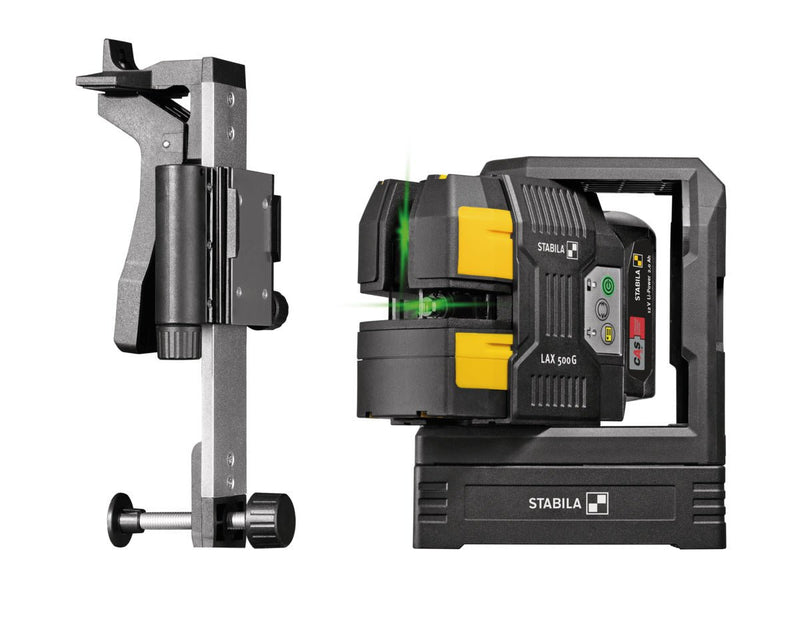

  • Flexible positioning: 1/4″ thread, rare-earth magnets and wall bracket.
  • Stable carrying case.
  • Protection rating IP 54 (without rechargeable battery).

Product Brochure

Technical data
Laser class2
Output< 1 mW
Laser wavelength510 - 530 nm
Self-levelling range +/-5°
Levelling accuracy +/-1/8 in @ 30 ft
Laser beam accuracy (up) +/-1/8 in @ 30 ft
Laser beam accuracy (down) +/-1/8 in @ 30 ft
Measuring range of visible line130 ft
Operating life20 h
Protection classIP 54
Tripod connection1/4"

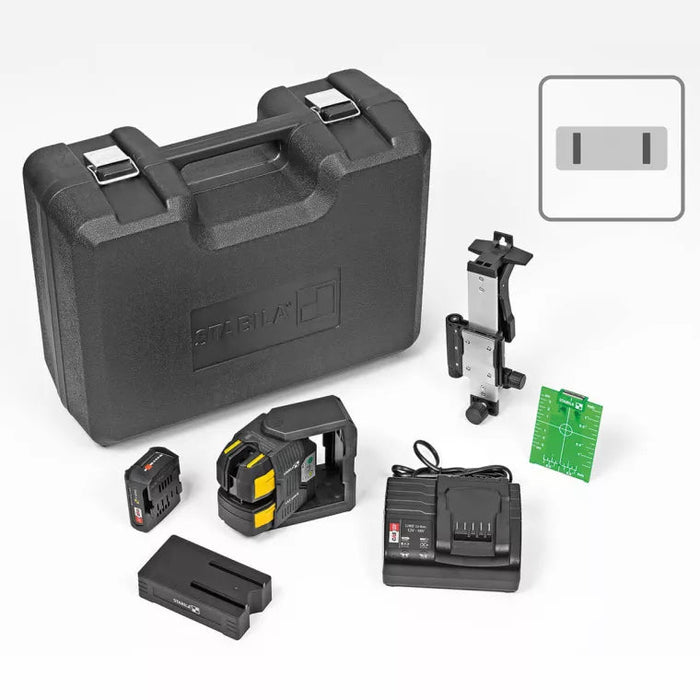

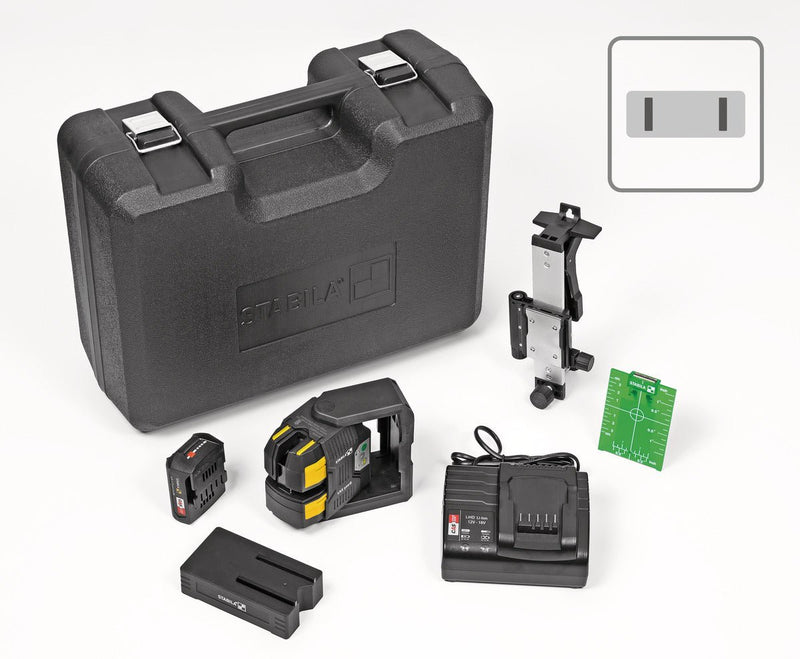

Includes:

  • Multi-line laser LAX 500 G
  • 12 V LI-POWER 2.0 Ah CAS rechargeable battery
  • SC 30 CAS charger
  • SLB 500 laser base
  • SWB 10 wall bracket
  • target plate
  • carrying case
