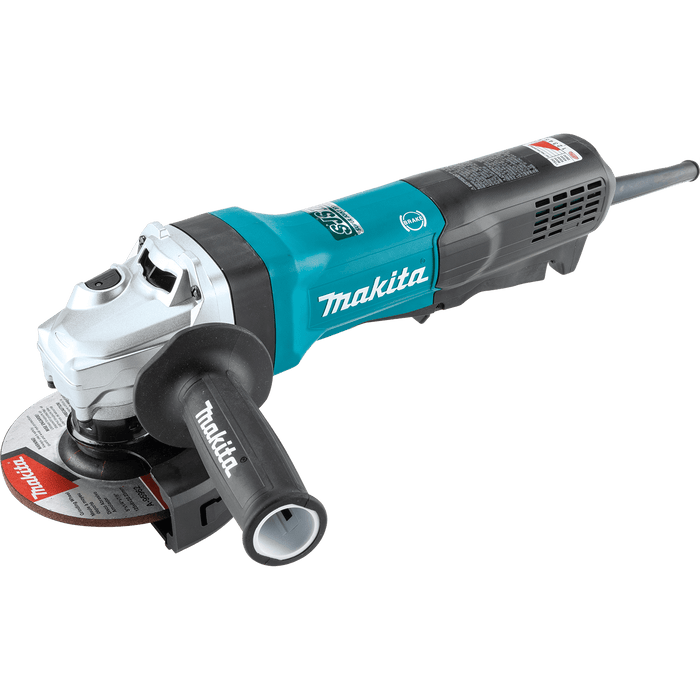

Makita (GA5093) 5" SJS™II High‑Power Angle Grinder, Paddle Switch, w/Brake

SKU GA5093
in stock
Original price $270.00 - Original price $270.00
Original price $270.00
$270.00
$270.00 - $270.00
Current price $270.00
  • Powerful 15 AMP motor delivers more output and variable (2,800 - 11,500) RPM

  • Zig-zag epoxy is applied to the armature for protection from debris and longer tool life

  • SJS™II technology is a leaf spring and cam gear drive mechanism engineered to reduce vibration

  • Variable speed control dial enables user to match the speed to the application

  • INCLUDES : Grinding wheel, wheel guard, side handle, inner flange, lock-nut,  wrench

SJS II Logo (Color on Dark Color)

5" SJS™II High-Power Angle Grinder with Paddle Switch and Brake (GA5093) features a powerful 15 AMP motor that delivers more output and features a variable speed control dial that allows the user to adjust RPM from 2,800 - 11,500 to match the speed to the application. The High-Power Angle Grinder features SJS™II, which uses a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use. Vibration is further reduced by the vibration absorbing side handle which provides increased comfort on the job. The GA5093 features an Electronic Controller that provides soft start, which is designed to suppress start-up reaction for smooth start-ups and longer gear life. The High-Power grinder features labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life. The motor fan is designed with enlarged fins for increased air flow and a cooler running motor. The GA5093 features spiral bevel gears for smoother rotations and a more efficient transfer of energy. It features a fully aluminum constructed gear housing which provides superior gear alignment and smooth transmission for increased durability and comfort. An Electronic Controller provides an electronic current limiter which helps protect the motor from overload in high torque applications. Convenience features include a “tool-less" wheel guard for easy adjustment and a paddle switch with lock-on for continuous use.



CA Prop 65 Warnings

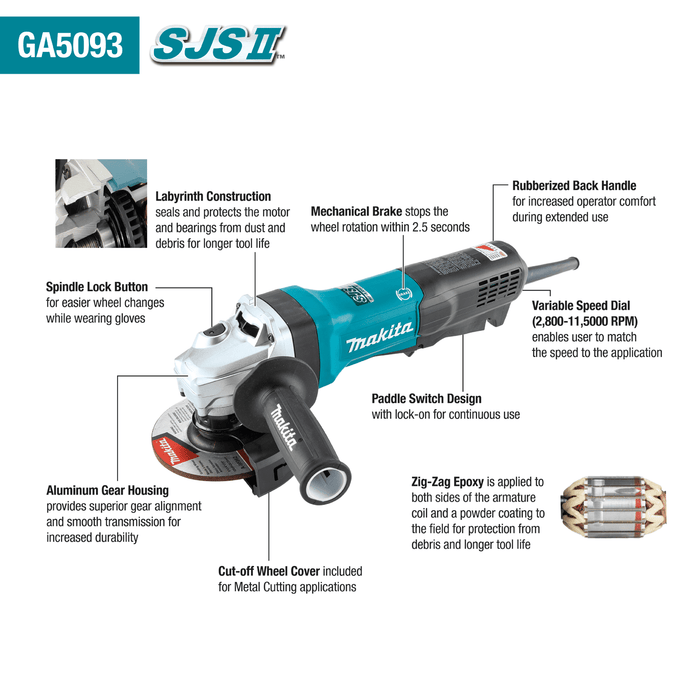

  • Powerful 15 AMP motor delivers more output and variable (2,800 - 11,500) RPM
  • SJS™II provides a leaf spring and cam gear drive mechanism that is engineered to reduce vibration for increased operator comfort during extended use
  • Vibration absorbing side handle provides increased comfort on the job
  • Mechanical brake stops the wheel in under 2.5 seconds
  • Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load
  • Electronic Controller provides soft start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
  • Electronic Controller provides an electronic current limiter which helps protect the motor from overload in high torque applications

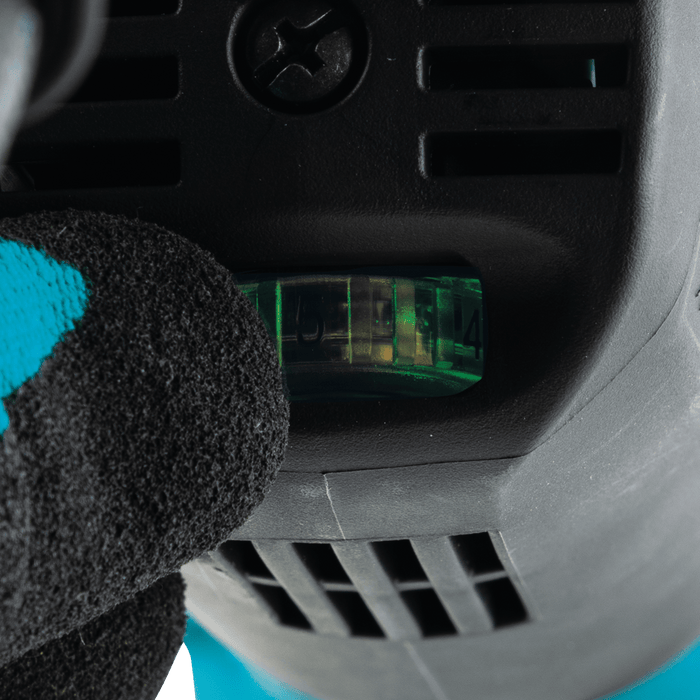

  • Variable speed control dial enables user to match the speed to the application
  • Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
  • Motor fan is designed with enlarged fins for increased air flow and a cooler running motor
  • Complete zig-zag epoxy is applied to both sides of the armature coil and a powder coating to the field for protection from debris and longer tool life
  • Spiral bevel gears for smoother rotations and a more efficient transfer of energy
  • Fully aluminum constructed gear housing provides superior gear alignment and smooth transmission for increased durability and comfort

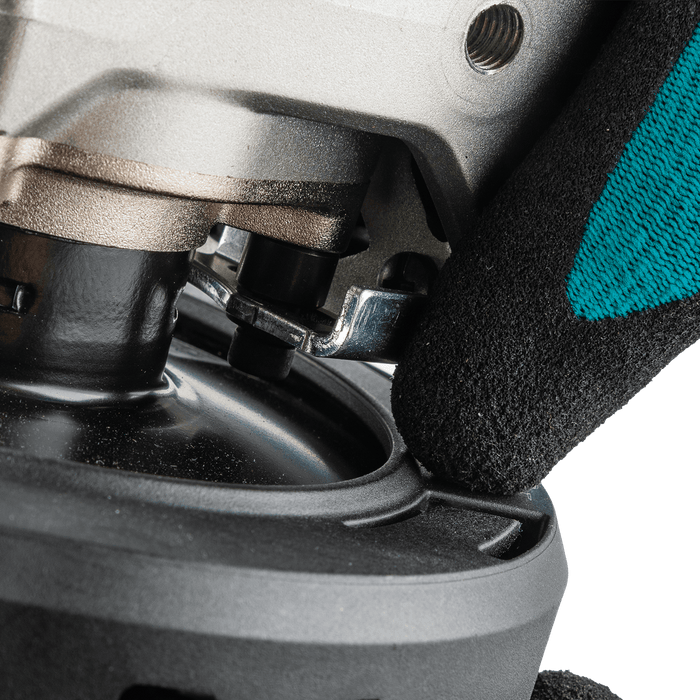

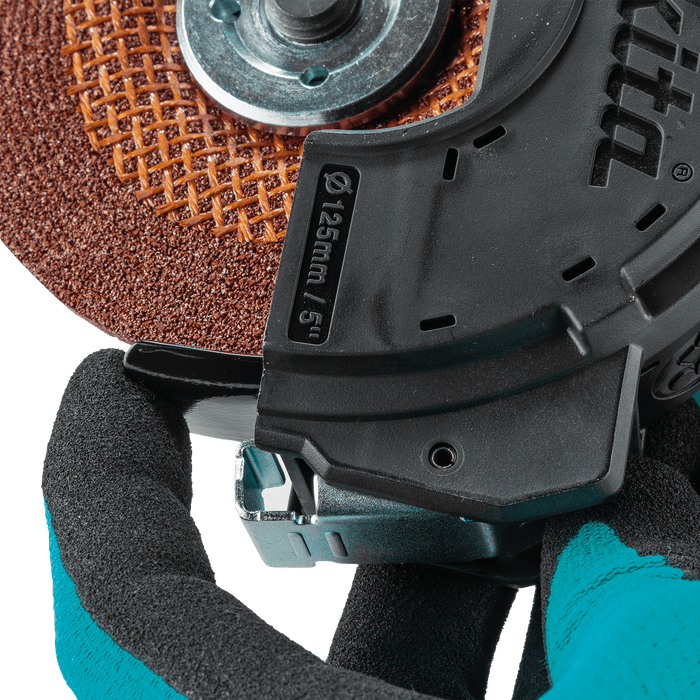

  • "Tool-less" wheel guard for easy adjustment
  • Slide switch with lock-on for continuous use

Wheel Diameter : 5"
AMPS : 15
No Load Speed (variable speed) : 2,800 - 11,500 RPM
Spindle Type : 5/8" - 11 UNC
Lock-On Switch : Yes
Lock-Off Switch : No

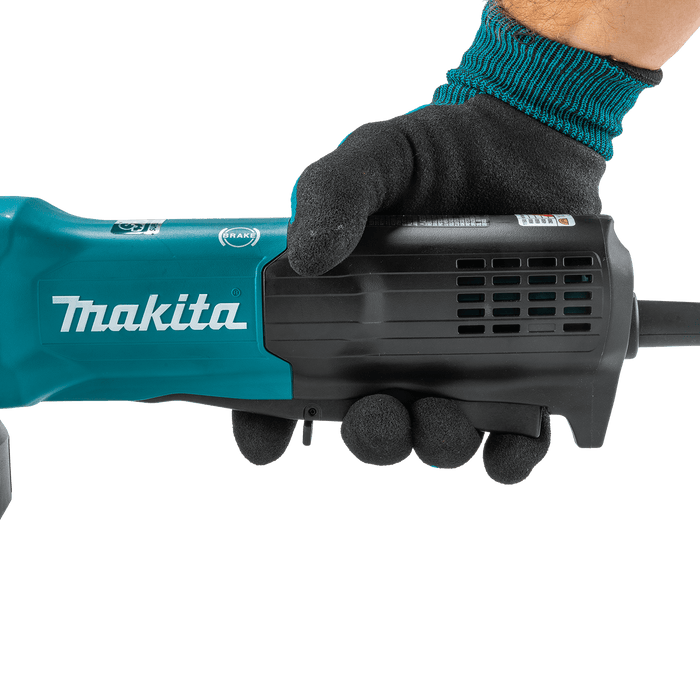

Switch Type : Body grip/paddle
Overall Length : 12-7/8"
Net Weight : 5.7 lbs.
Variable speed dial : Yes
Power Type : Corded
Bind-Up Control : No
Electric Brake : Yes
Packaged Depth (in) : 7.4"
Packaged Height (in) : 5.91"
Packaged Width (in) : 17.68"
Shipping Weight : 9.92 lbs.
UPC Code : 088381-771740

(1) 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)

(1) 5" Tool-less Wheel Guard (123145-8)

(1) Inner Flange (224399-1)

(1) Lock Nut Wrench (782412-6)

(1) Side Handle (162258-0)

(1) Lock Nut (224568-4)
