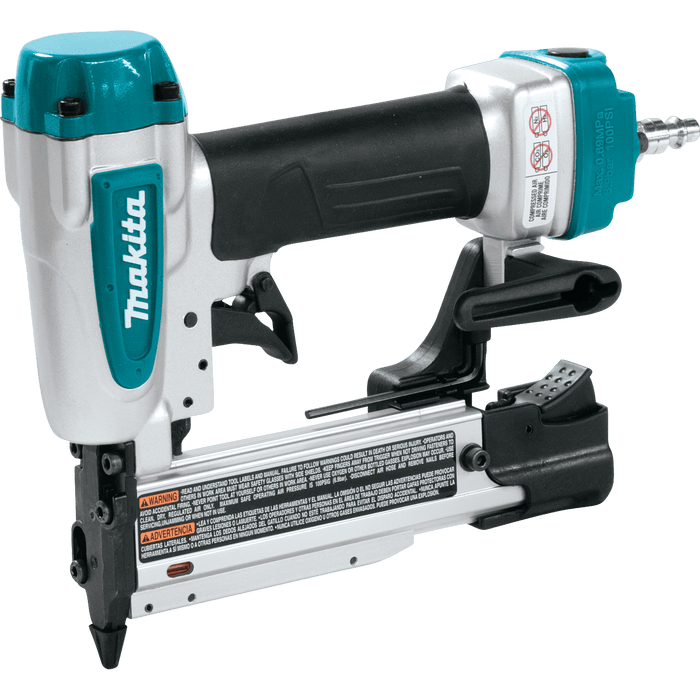

Makita (AF353) 1-3/8" Pin Nailer, 23 Gauge

SKU AF353
in stock
Original price $169.00 - Original price $169.00
Original price $169.00
$169.00
$169.00 - $169.00
Current price $169.00
  • 23 gauge pins create minimal nail holes for a faster and more professional looking finish

  • Aluminum body, magazine, and cylinder for added strength

  • Lightweight design, soft grip, and slim profile for easy operation

  • Nail lock-out mechanism protects tool and work surface from nail-less blank fires

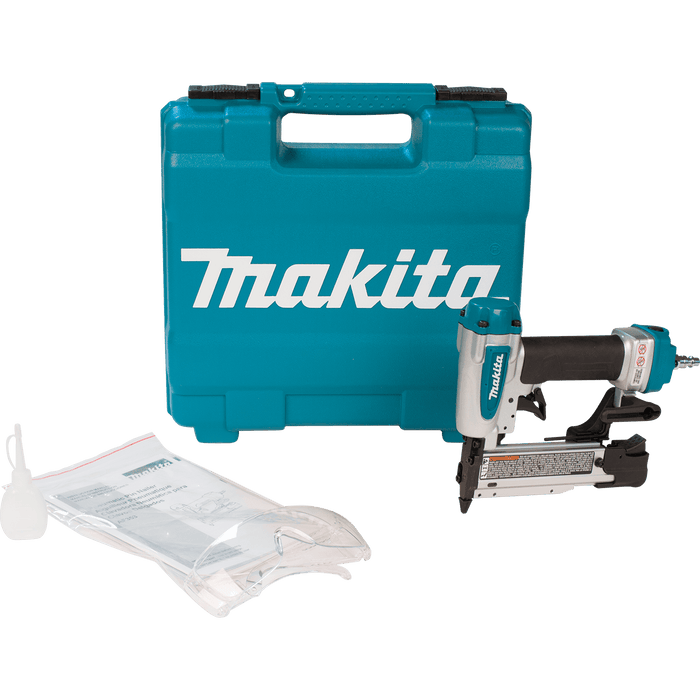

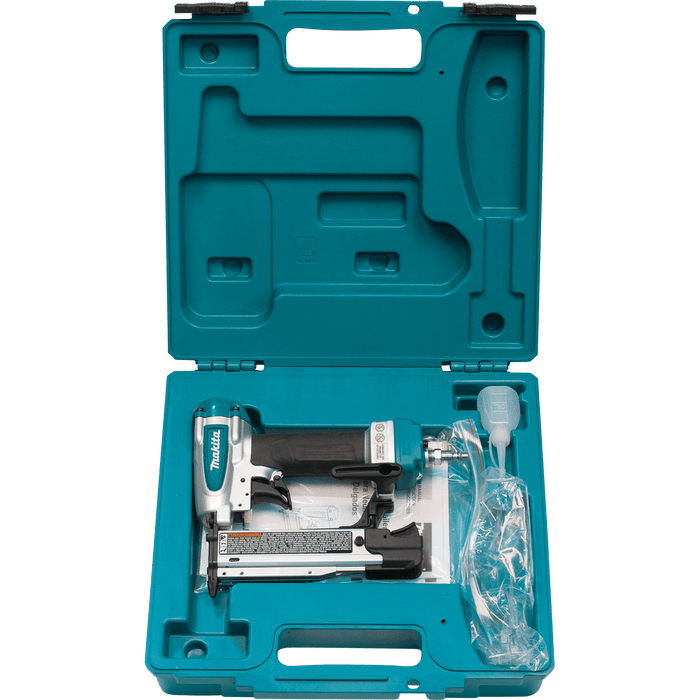

  • INCLUDES : Pneumatic nailer oil, safety glasses, air fitting, no-mar tips (2), hex wrench, tool case

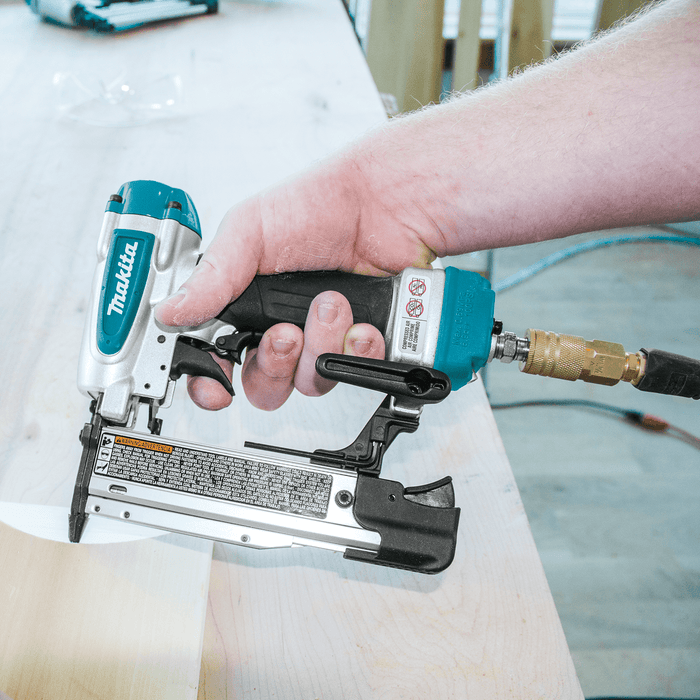

The Makita 23 Gauge Pin Nailer (model AF353) offers an array of features and powerful performance in a compact size. The AF353 has a side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16", and 1-3/8". The nail lock-out and red window alerts the user when to reload pins as the 2-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353 was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and 2 removable no-mar tips with sightlines for increased pinning accuracy.



CA Prop 65 Warnings

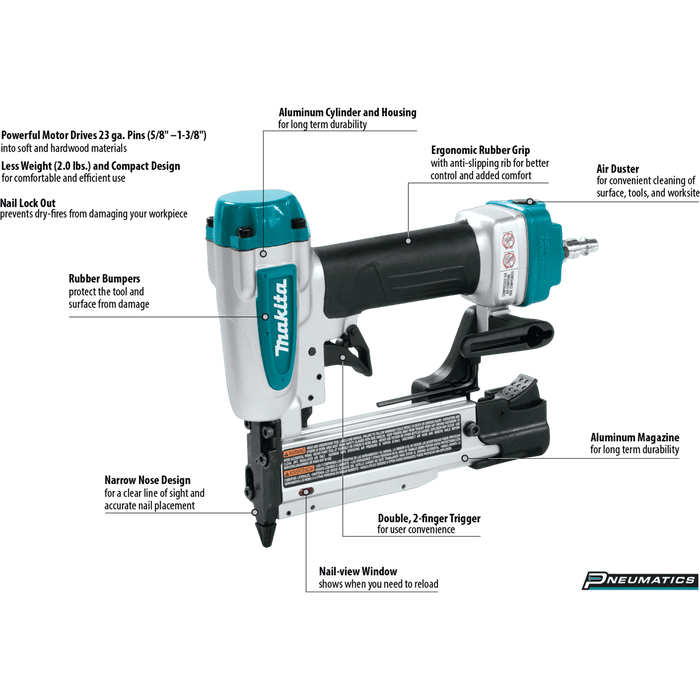

  • Powerful motor drives standard headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8"
  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs.
  • Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)

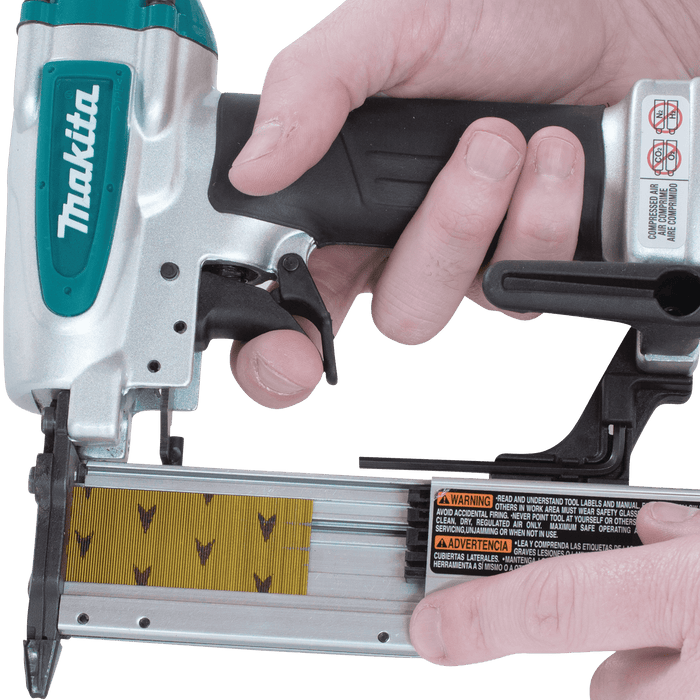

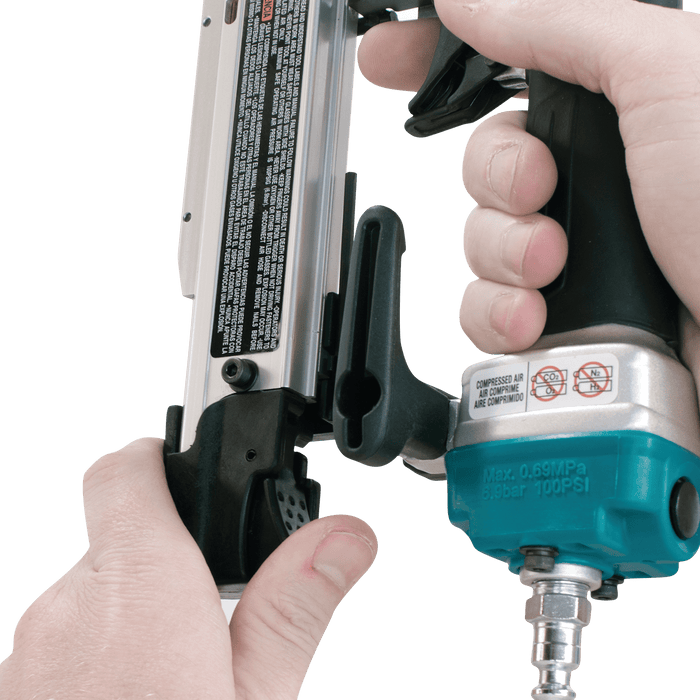

  • Side, drop-in loading magazine holds up to 130 nails for maximum efficiency

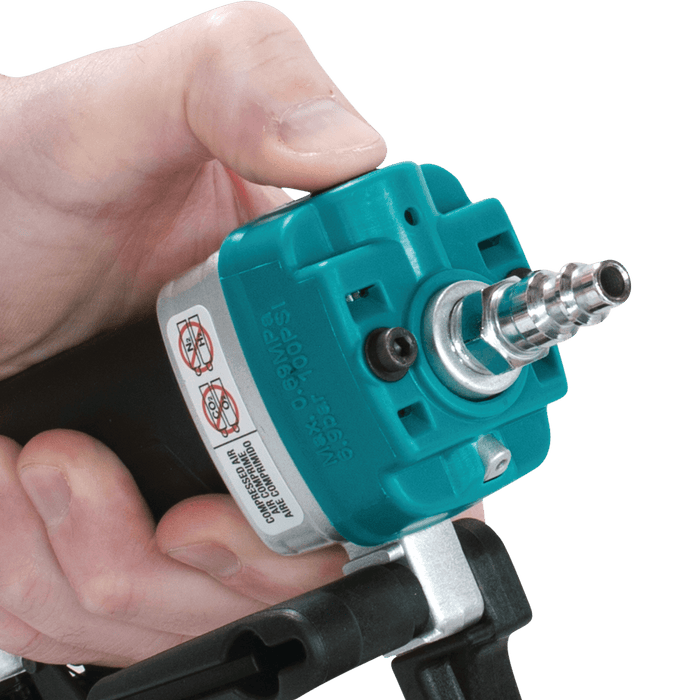

  • Built-in air duster provides convenient air flow to clear work surface

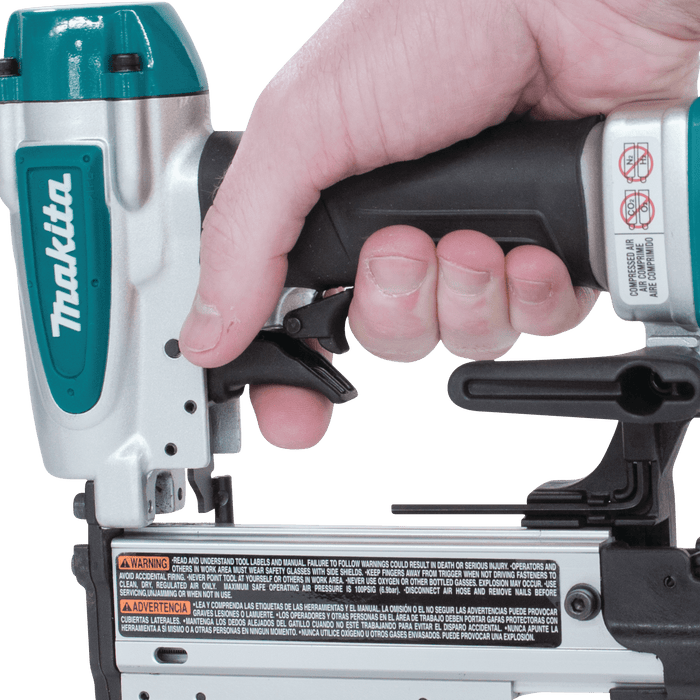

  • Double, 2-finger trigger for user convenience
  • Rear exhaust port directs exhaust air away from operator and work surface
  • Includes two removable no-mar tips with sightlines for increased pinning accuracy; convenient on tool storage

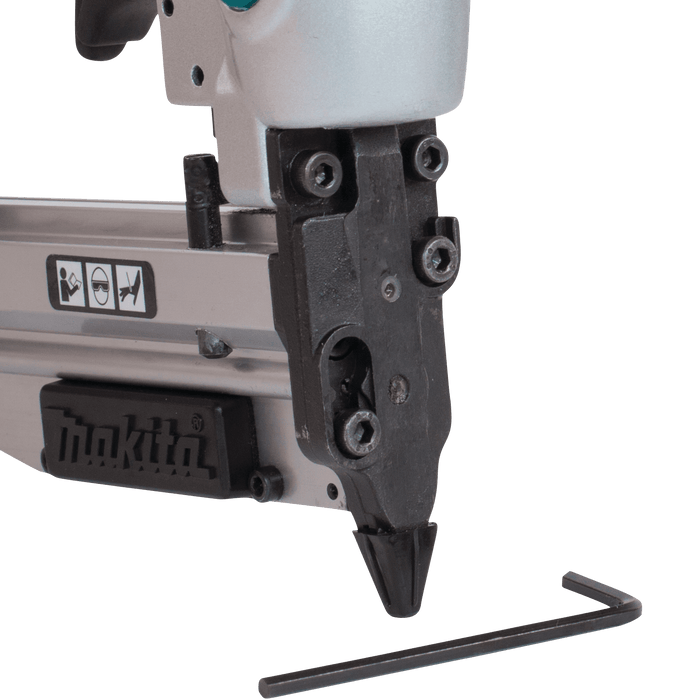

  • Easy to clear nose for fast and easy nail extraction should a jam occur
  • Narrow nose design allows easy nailing access to tight areas and angles
  • Magazine self adjusts to the proper 5/8", 3/4", 1", 1-3/16" or 1-3/8" fastener length when loaded

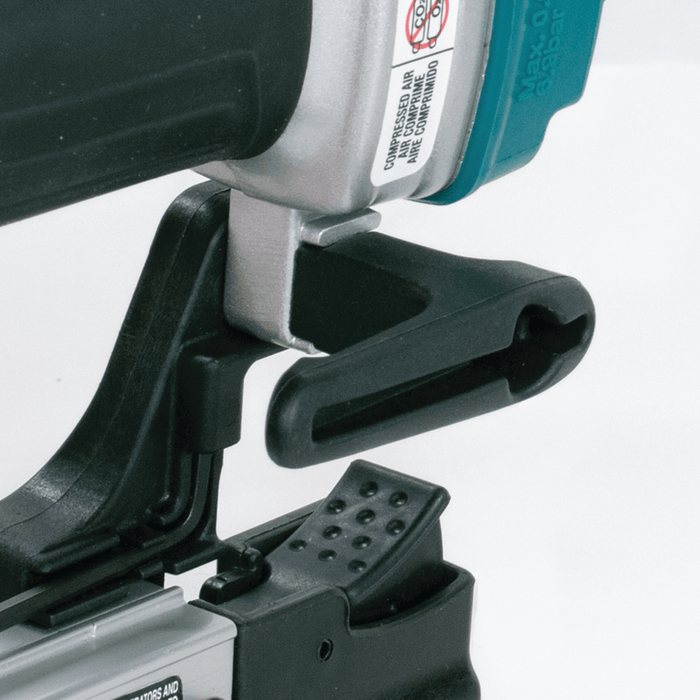

  • Reversible belt hook allows the tool to remain close
  • Housing bumpers protect tool and work surface
  • Integrated rubber soft grip for operator comfort

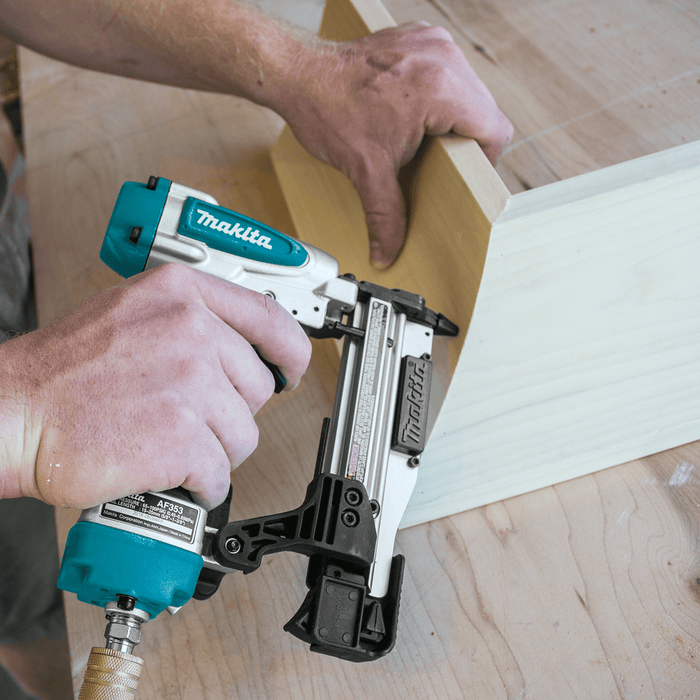

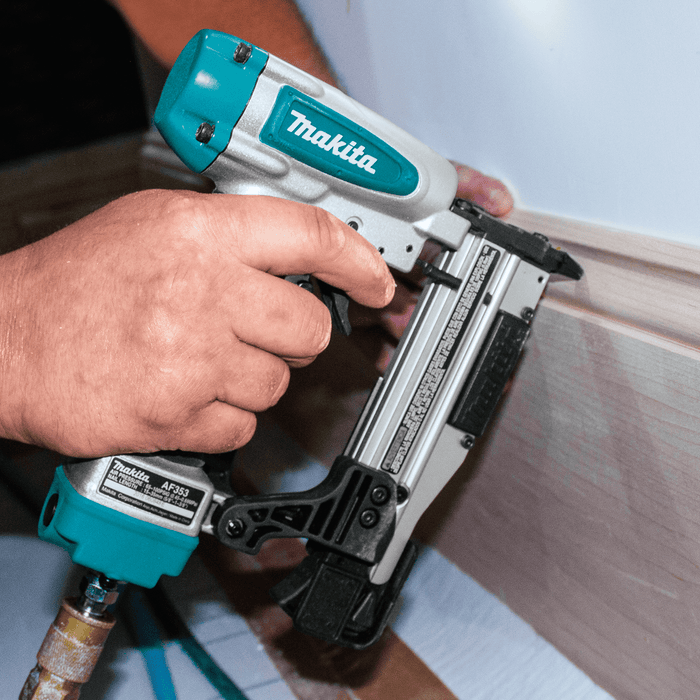

  • Ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a wide variety of other woodworking applications
  • Minimum recommended air delivery of .8 SCFM @ 90PSI
  • 3-year limited warranty

Power Type : Pneumatic
Operating Air Pressure (PSI) : 65 - 100
Minimum Recommended Air Delivery : .8 SCFM @ 90 PSI
Nail Size : 5/8", 11/16", ¾", 1", 1-3/16", 1-3/8" (23 ga.)
Maximum Magazine Capacity : 130
Fastening category : Pin
Dimensions (LxWxH) : 8-3/16" x 2-5/8" x 7-1/2"
Net Weight : 2 lbs.
Industrial Style Fitting Included : 1/4" NPT x 1/4"
Inlet Size : 1/4" NPT
Operating Air Pressure (Bar) : 4.9 - 8.3
Air Fitting Included : Yes
Packaged Depth (in) : 4.8"
Packaged Height (in) : 13.86"
Packaged Width (in) : 13.62"
Shipping Weight : 6.39 lbs.
UPC Code : 088381-822428

(1) Pneumatic Nailer Oil (181434-7)

(1) Safety Glasses

(2) No-Mar Tip

(1) Air Fitting

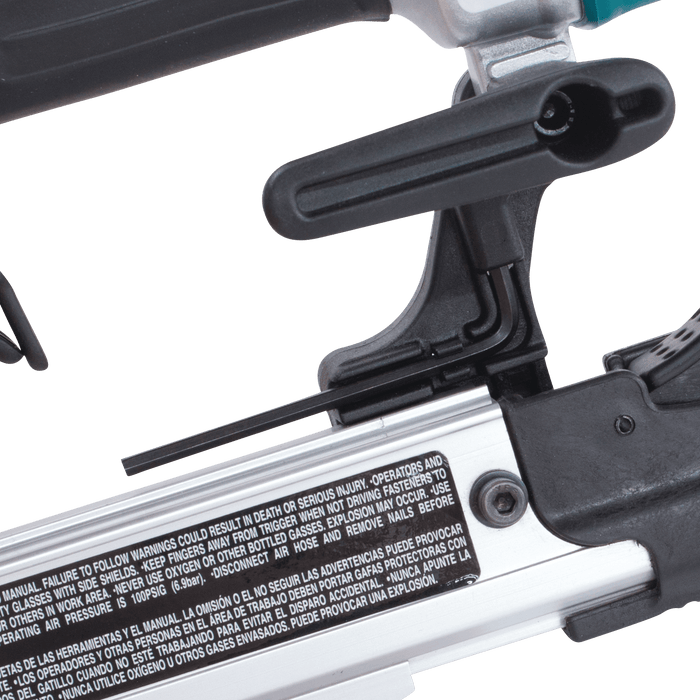

(1) Hex Wrench

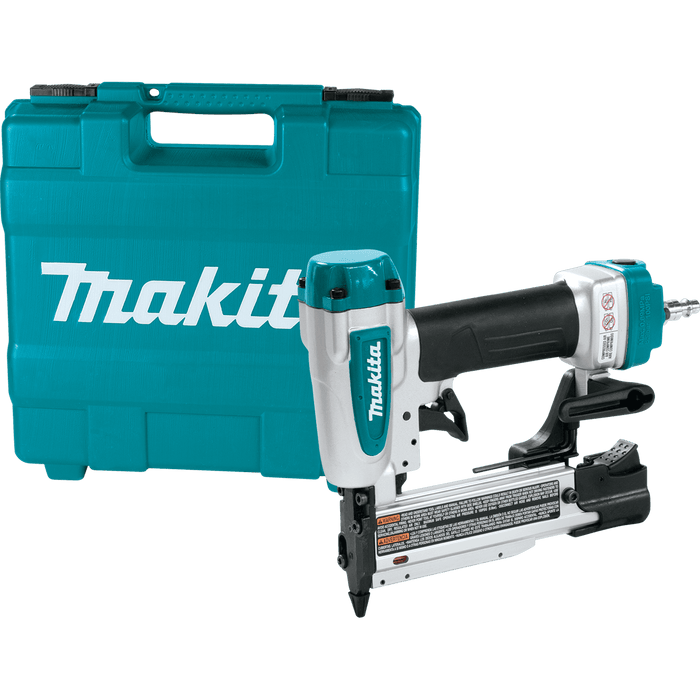

(1) Tool Case
