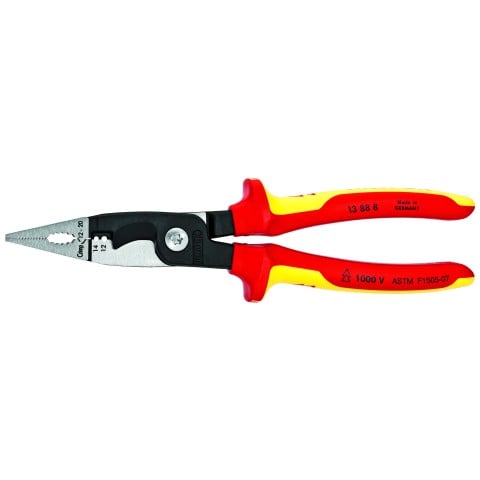

KNIPEX (13 88 8 SBA) 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated

KNIPEX (13 88 8 SBA) 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated

SKU 13 88 8 SBA
in stock
-
$92.12
-
$92.12
by KNIPEX

  • 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

  • Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)

  • Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)

  • Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 9/16" dia. (5 x 2.5 mm² / dia. 5 mm)

  • 1000V multi-component grips, ASTM F1505-tested

Interested in Bulk? Request a Quote Here

KNIPEX (13 88 8 SBA) 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated

6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs. Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²). Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²). Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm). Slim head dimensions for easier access. Bolted joint: precise, zero-backlash operation of pliers. 1000V multi-component grips, ASTM F1505-tested. High-grade special tool steel; forged, multi stage oil-hardened.



CA Prop 65 Warnings

  • 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs
  • Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
  • Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
  • Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)
  • Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)
  • Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 9/16" dia. (5 x 2.5 mm² / dia. 5 mm)
  • Slim head dimensions for easier access
  • Bolted joint: precise, zero-backlash operation of pliers
  • 1000V multi-component grips, ASTM F1505-tested
  • High-grade special tool steel; forged, multi stage oil-hardened

Part Number : 13 88 8 SBA
UPC : 843221012120
Country of Origin : Germany
Length : 8"
Width : 2 1/8"
Height : 1 1/8"
Weight : 0.6 lbs.
1000 Volt Insulated : Yes
Material Type : High-grade special tool steel, forged, multi-stage oil-hardened
Handle Type : 1000V Insulated, multi-component, ASTM
Gripping Surface
Smooth tip and serrated jaws
Surface Finish : Polished
Other Surface Finish : Black atramentized
Crimping Positions : 1
Joint Type : Bolted
Cutting Capacity - Cu and Al conductor : 9/16"
Cutting Edge Shape : Shear
Jaw Type : Flat
Color : Red/Yellow
Crimping Capacity : 20 to 12
Stripping Capacity : 14 and 12 AWG
Cable Type : Stranded Cables
