The Complete Solution for Job Site Layout Applications
3 x 360° laser planes provide 6 cross-point reference positions for level, align, plumb and square applications
Sharp laser line with +/-1/16” at 33’ for best-in-class accuracy
Green line visibility range up to 115’ and detectable up to 230' with Makita Laser Detector
Makita 12V max CXT® 2.0Ah rechargeable battery provides up to 7 hours of continuous run time

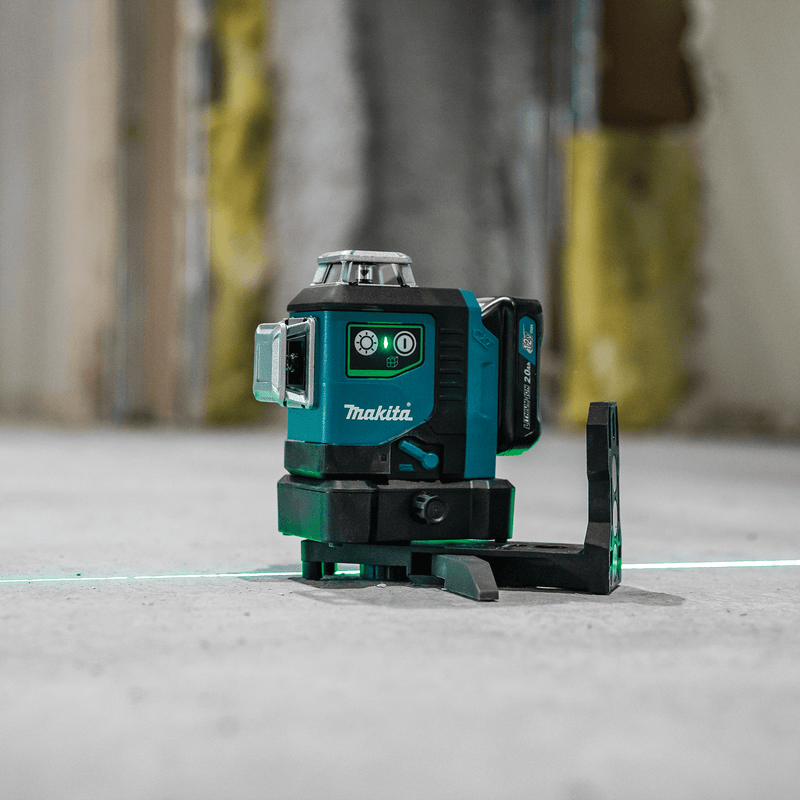

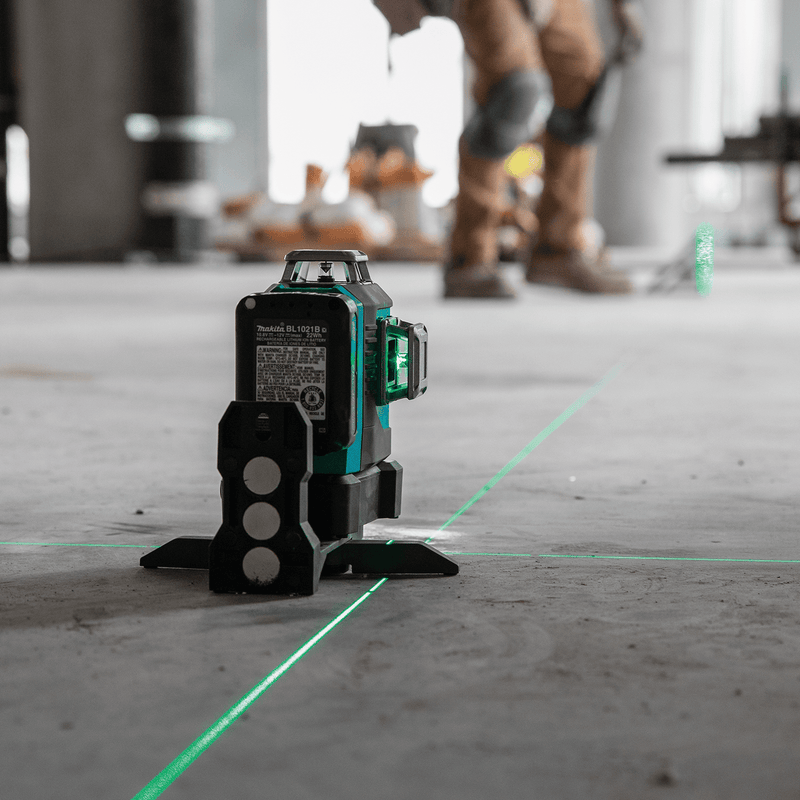

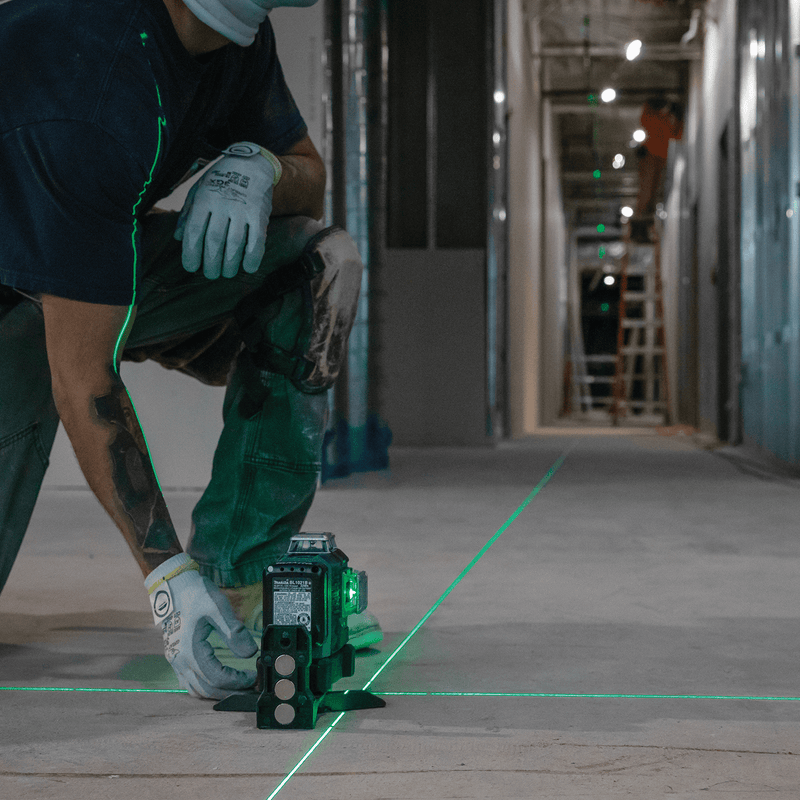

The Makita 12V max CXT® Self-Leveling 360° 3-Plane Green Laser Kit (SK700GDNAJ) gives the user a cordless solution for job site layout applications. With three 360° laser planes, users get 6 cross-point reference positions for level, align, plumb and square applications. The self-leveling is correctable up to 4-degrees of slope allowing operation on uneven surfaces. The SK700GDNAJ has a line visibility range up to 115' and is detectable up to 230’ with a Makita Laser Detector (sold separately). The sharp laser line with +/-1/16” at 33’ for best-in-class accuracy. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. The 360° rotating base provides fine vertical line adjustment and a plumb point position for increased accuracy and precision. The laser has an IP54 rating for dust and water resistance. The highly protected laser windows are recessed for increased durability.

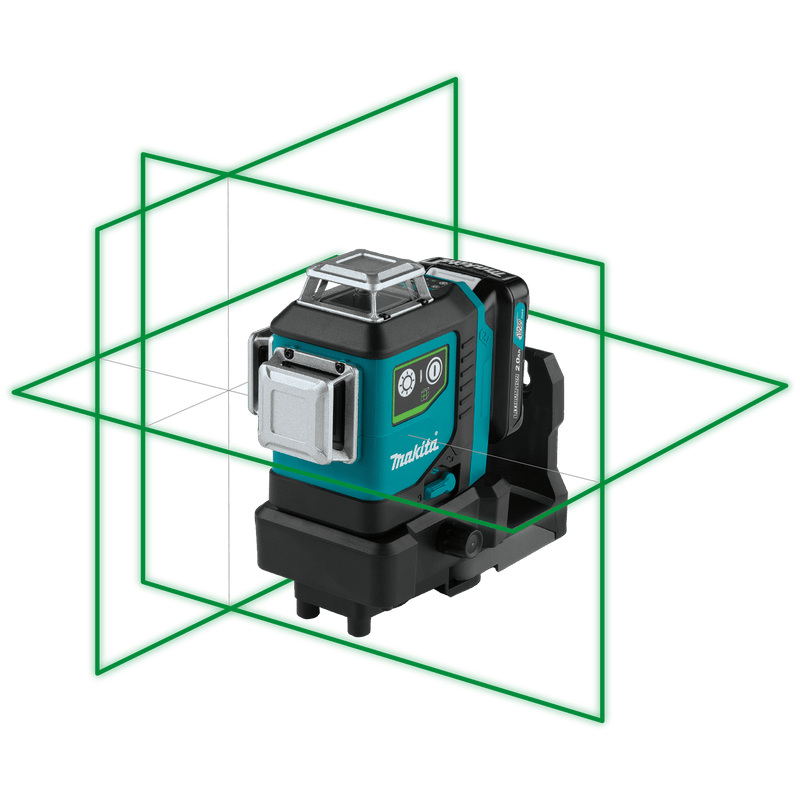

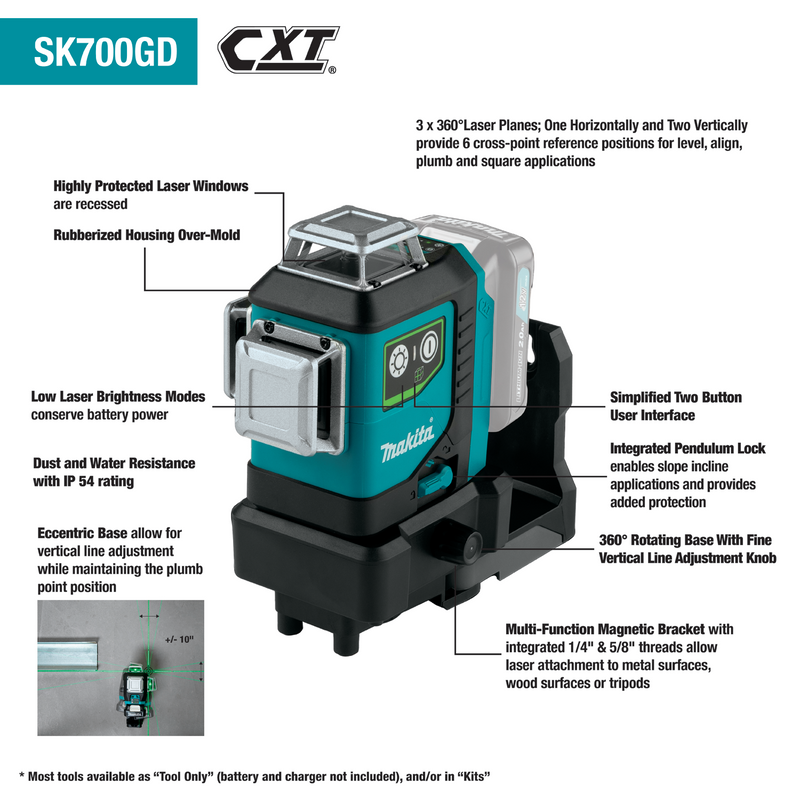

3 x 360° laser planes; one horizontally and two vertically provide 6 cross-point reference positions for level, align, plumb and square applications
Sharp laser line with +/-1/16” at 33’ for best-in-class accuracy
Green line visibility range up to 115’ and detectable up to 230' with Makita Laser Detector (sold separately)
Up to 7 hours of continuous run time using included Makita 12V max CXT® 2.0Ah rechargeable battery; up to 14 hours of continuous run time using a 12V max CXT® 4.0Ah battery
360° rotating base with fine vertical line adjustment knob for increased accuracy
Eccentric base allow for vertical line adjustment while maintaining the plumb point position (±10°) for increased simplicity and precision
Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
Integrated pendulum lock enables slope incline applications and provides added protection during transport & storage
Dust and water resistance with IP 54 rating for increased durability
Highly protected laser windows are recessed for increased durability
Rubberized housing over-mold for increased protection
Simplified two button user interface for ease of operation
Low laser brightness modes conserve battery power for extended run-time performance

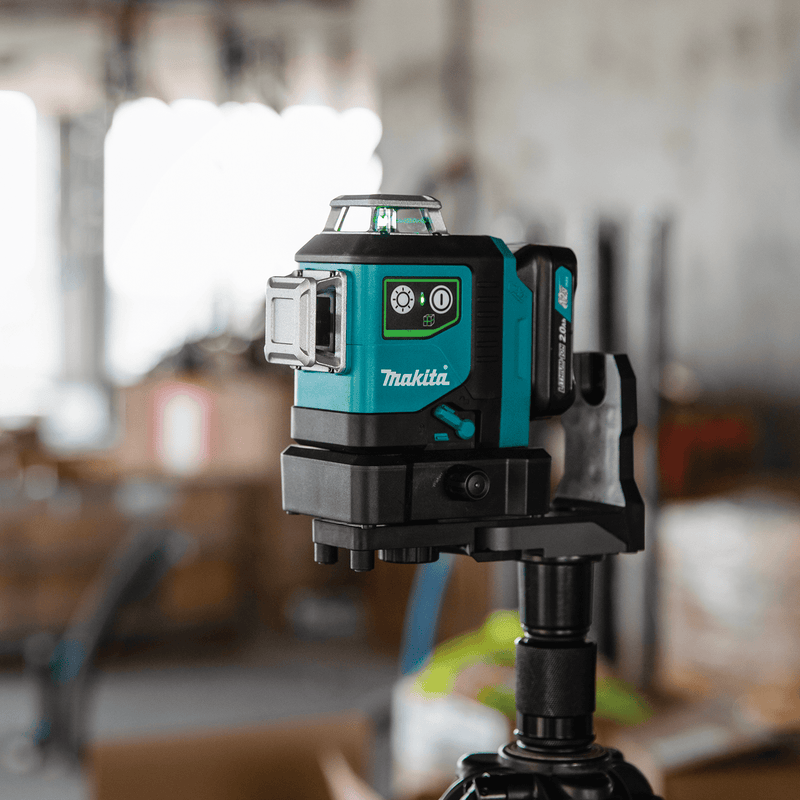

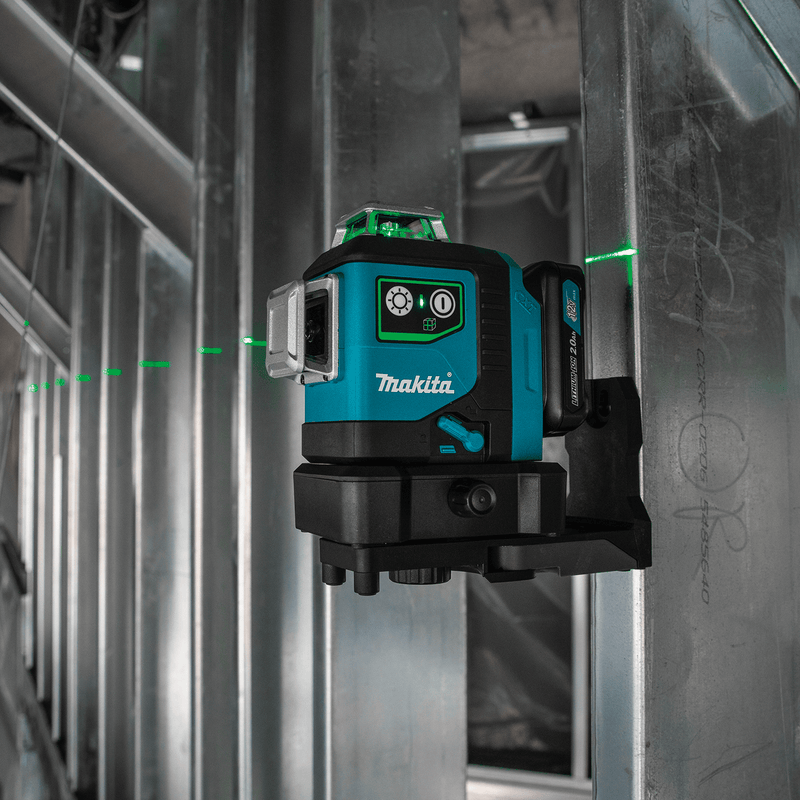

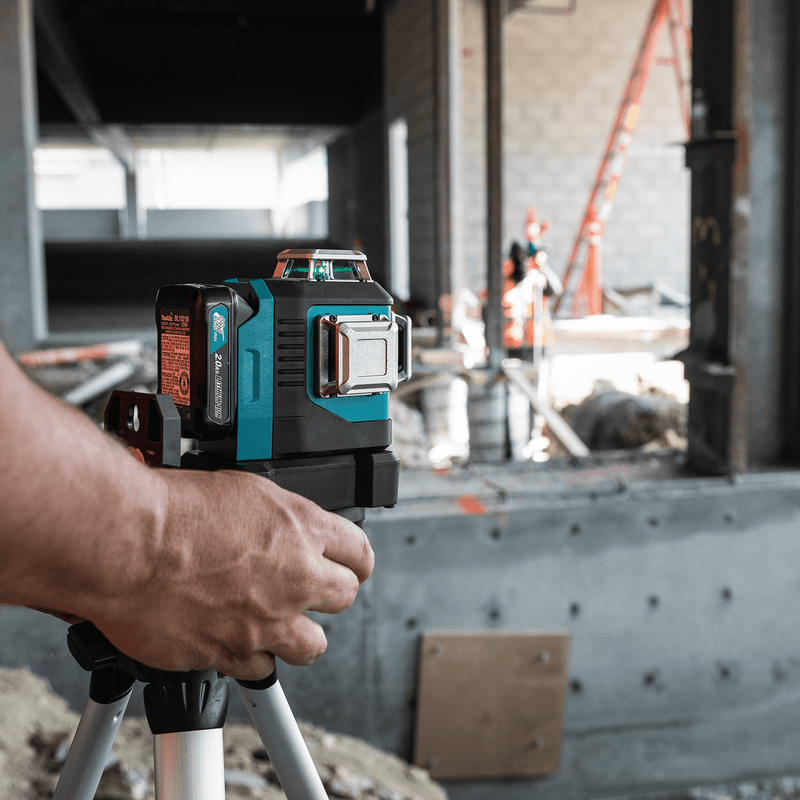

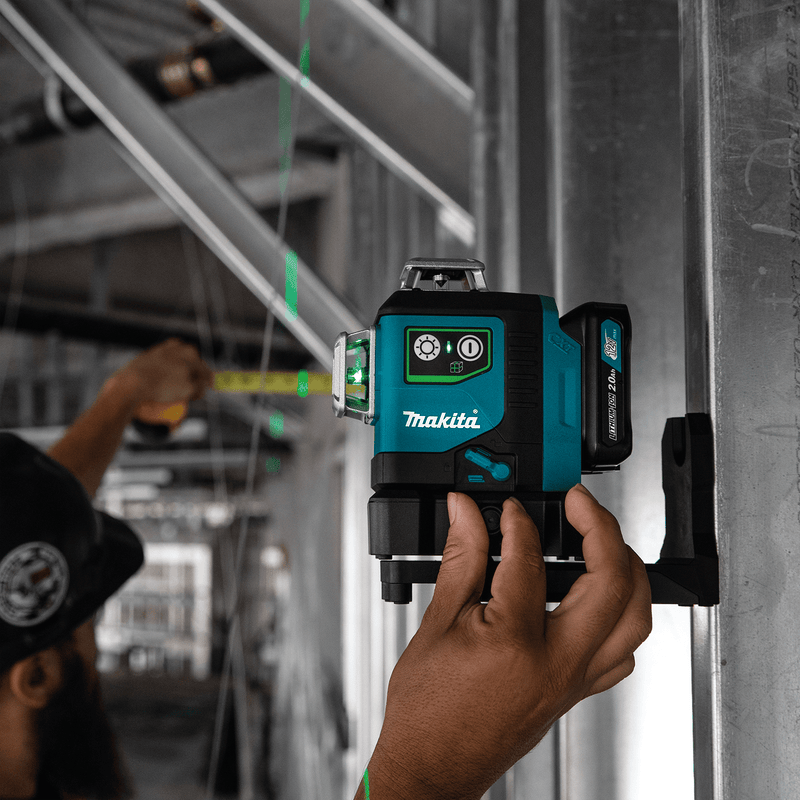

Multi-function magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or tripods
Battery Protection Circuit protects against overloading, over-discharging and over-heating
Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
Makita interlocking stackable cases available for efficient organization, transporting and protection (sold separately)
Not compatible with 12V max pod-style tools, batteries and chargers
3-year limited warranty on tool, battery and charger
Only use genuine Makita batteries and chargers
Line accuracy (at 33') : +/- 1/16"
Point beam direction : 6 cross-points (up, down, left, right, front, back)
Line beam direction : 3-Plane 360° (2x Vertical, 1x Horizontal)
Working range (line) : 115'
Working Range with Detector : 230'
Operating time (hours) : 22
Laser diode : Class II, 510-530 nm
Levelling range : 4°
Debris resistance : IP54 rating (dust & water resistance)
Auto shut off : Yes
Net Weight (with battery, sold separately) : 2.2 lbs.
Laser Beam Color : Green
Battery : 12V max CXT® Lithium-Ion
Packaged Depth (in) : 8.5"
Packaged Height (in) : 11.625"
Packaged Width (in) : 15.5"
Shipping Weight : 9.15 lbs.
UPC Code : 088381-750936

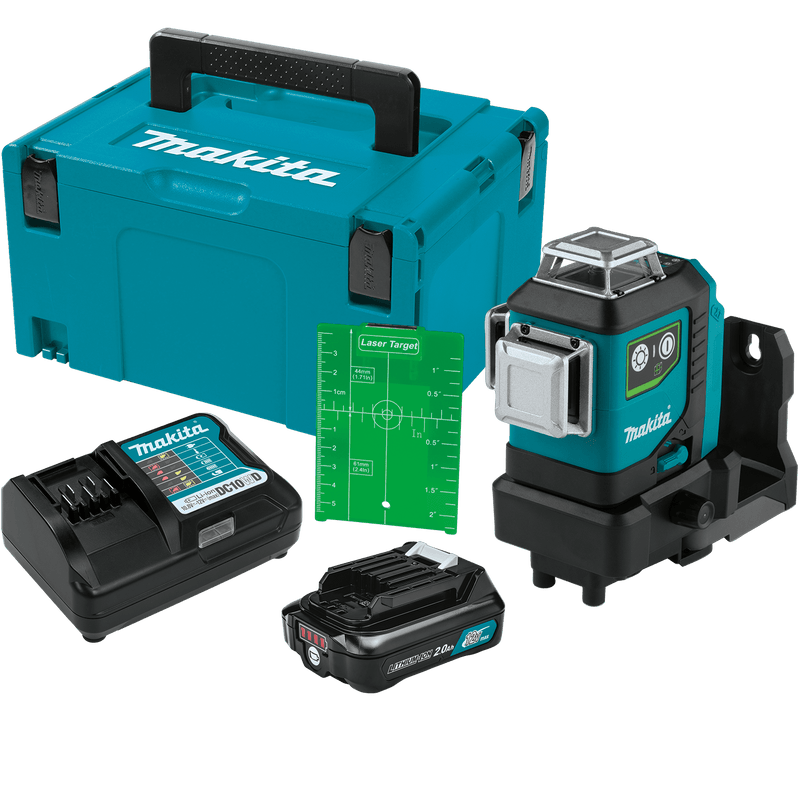

(1) 12V max CXT® Self-Leveling 360° 3-Plane Green Laser (SK700GD)
(1) 12V max CXT® Lithium-Ion 2.0Ah Battery (BL1021B)
