Large 3-13/16” cutting capacity at 90° with convenient guide rail compatible base without the need for an adapter
Makita-built brushless motor delivers 3,500 RPM for faster cutting performance
Constant speed control automatically applies additional power under load for optimum performance
XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions

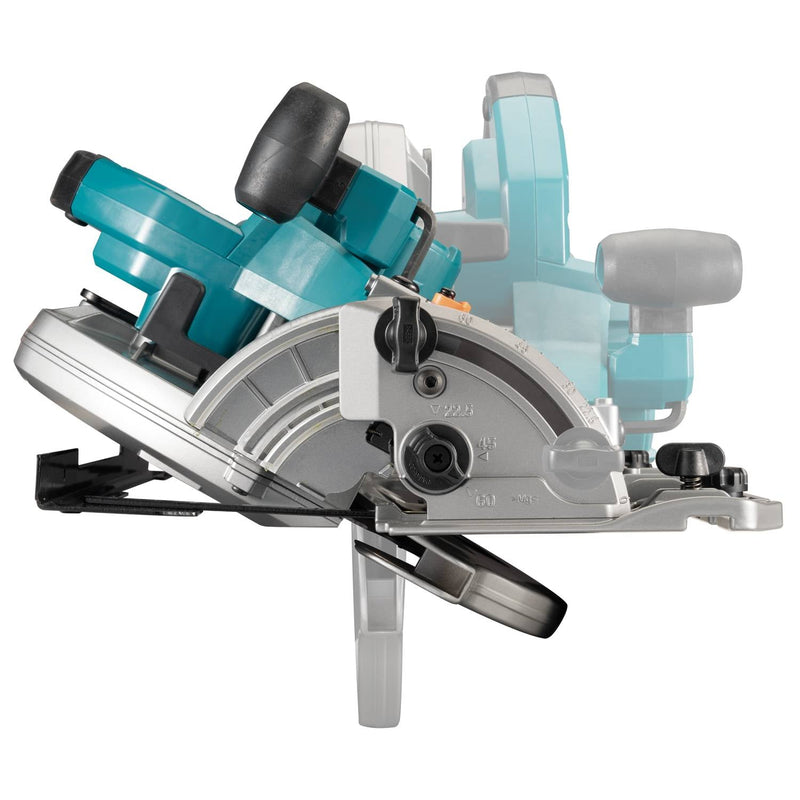

Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°

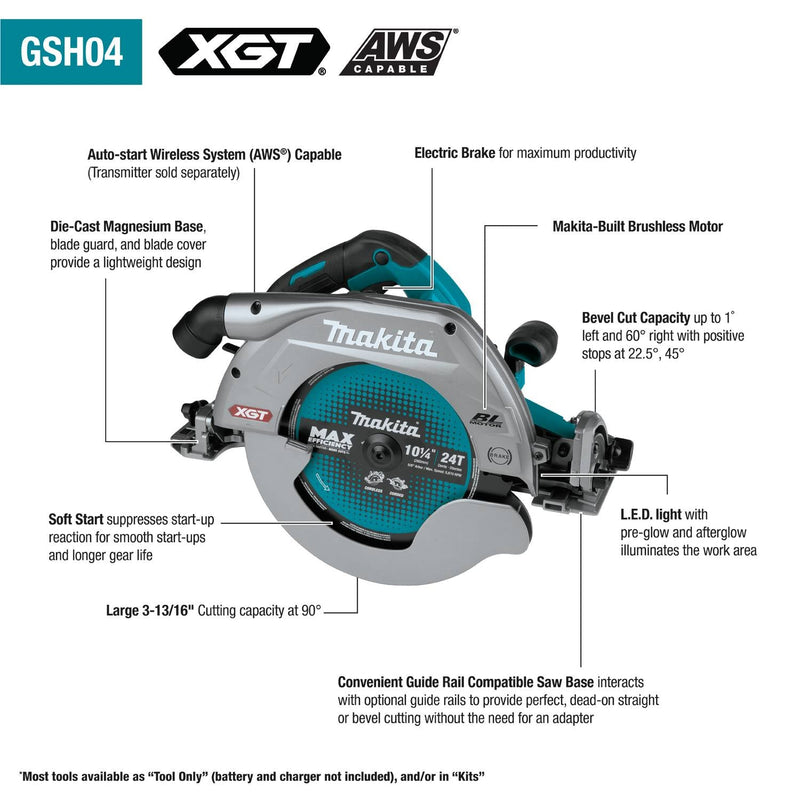

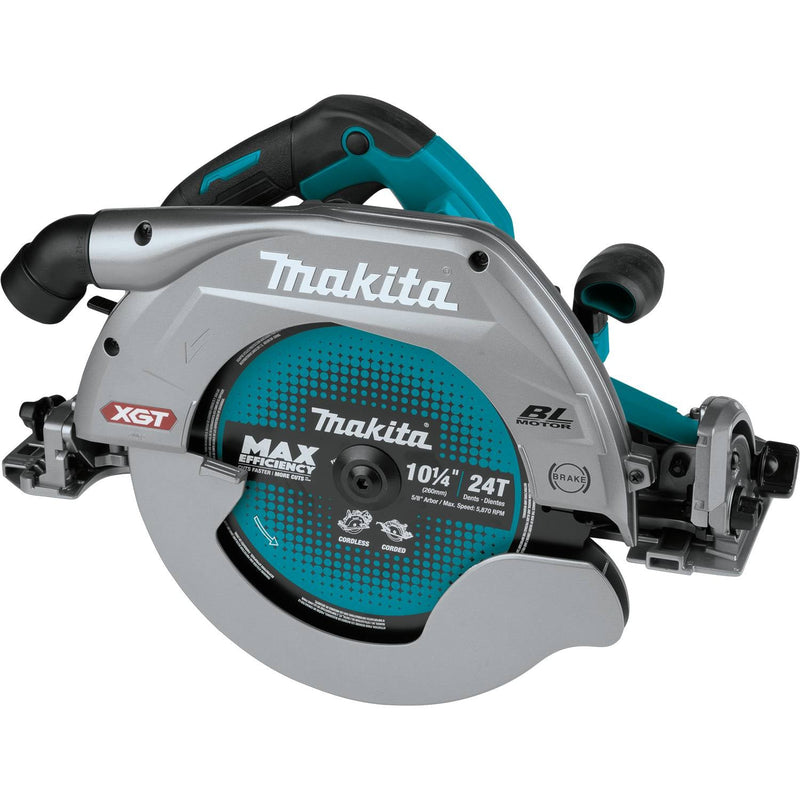

The 40V max XGT® Brushless 10-1/4" Circular Saw with Guide Rail Compatible Base combines efficient cutting with the convenience of guide rail compatibility. The Makita-built brushless motor delivers 3,500 RPM for fast cutting performance, with constant speed control that automatically applies additional power under load for optimum performance. It offers 3-13/16” of cutting capacity at 90° with bevel cut capacity up to 1° left and 60° right with positive stops at 22.5° and 45°. It features a die-cast magnesium base, blade guard, and blade cover for lower weight at only 13.4 lbs. with battery (battery sold separately). The convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter. Combined with a guide rail (sold separately), the GSH04 is a more portable option over a table saw for a range of cutting applications.
Makita-built brushless motor delivers 3,500 RPM for faster cutting performance
Constant speed control automatically applies additional power under load for optimum performance
XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions
Bevel cut capacity up to 1° left and 60° right with positive stops at 22.5°, 45°
Large 3-13/16" cutting capacity at 90°
Electric brake for maximum productivity
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
L.E.D. light with preglow and afterglow illuminates the work area
Compact and ergonomic design at only 17-7/8" long

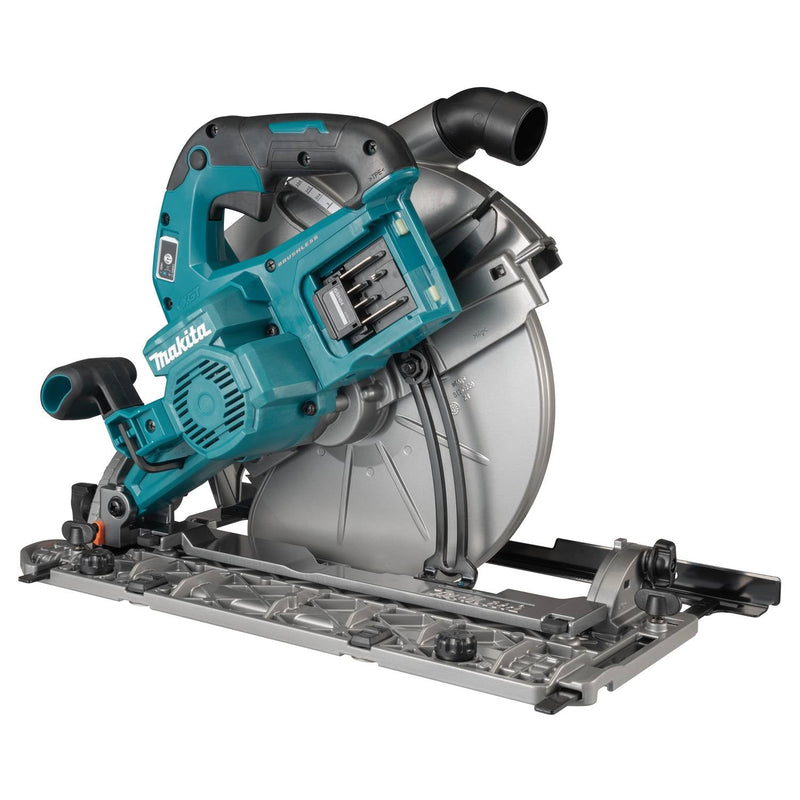

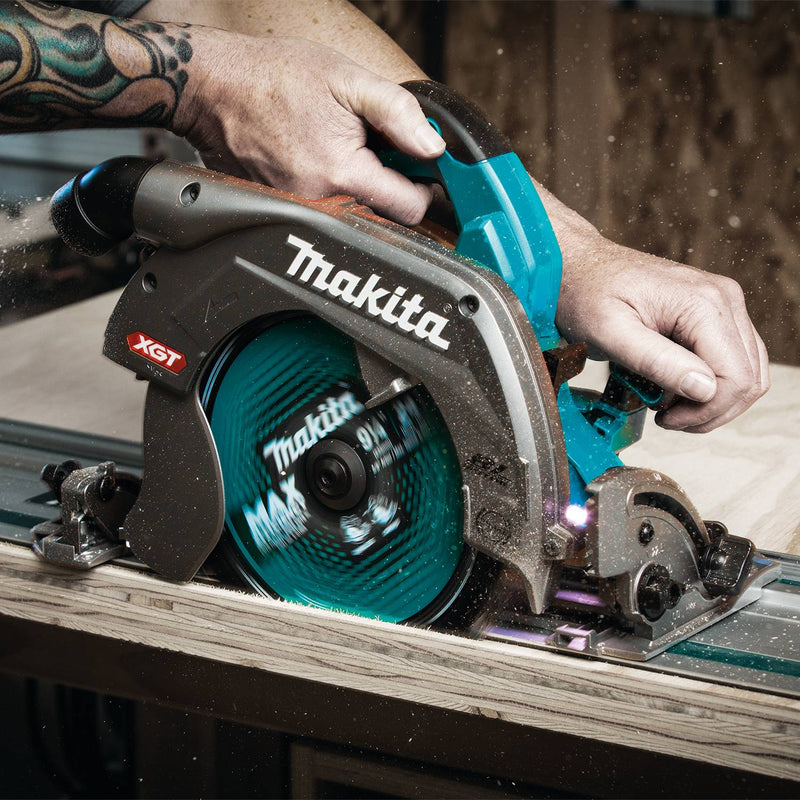

Convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter
Die-cast magnesium base, blade guard, and blade cover provide a lightweight design; weighs only 13.5 lbs. with battery (battery not included)

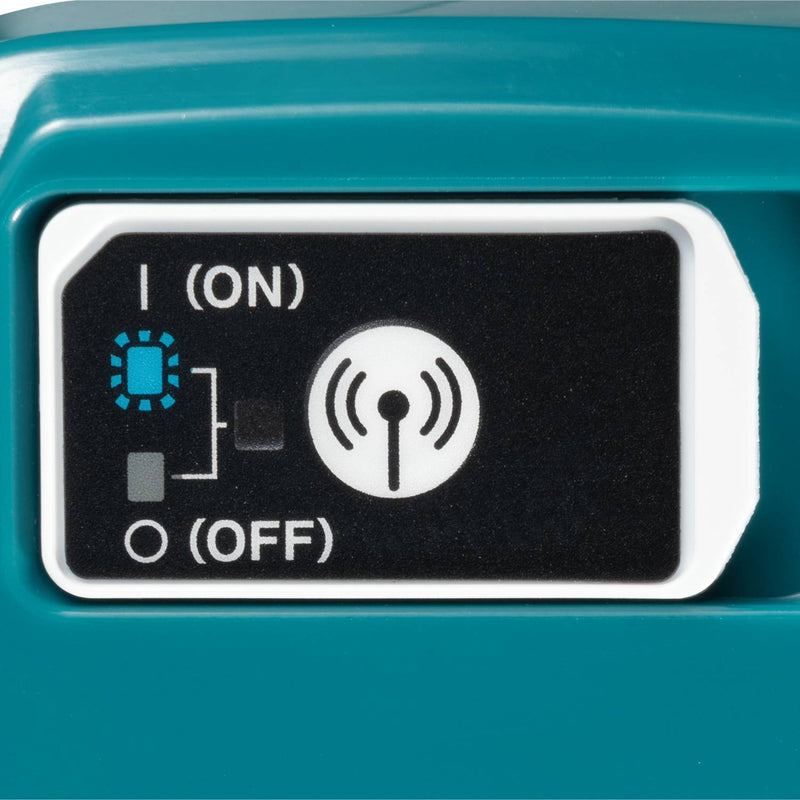

Auto-start Wireless System (AWS®) uses Bluetooth technology to power wireless on-off communication between the tool and dust extractor
AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately

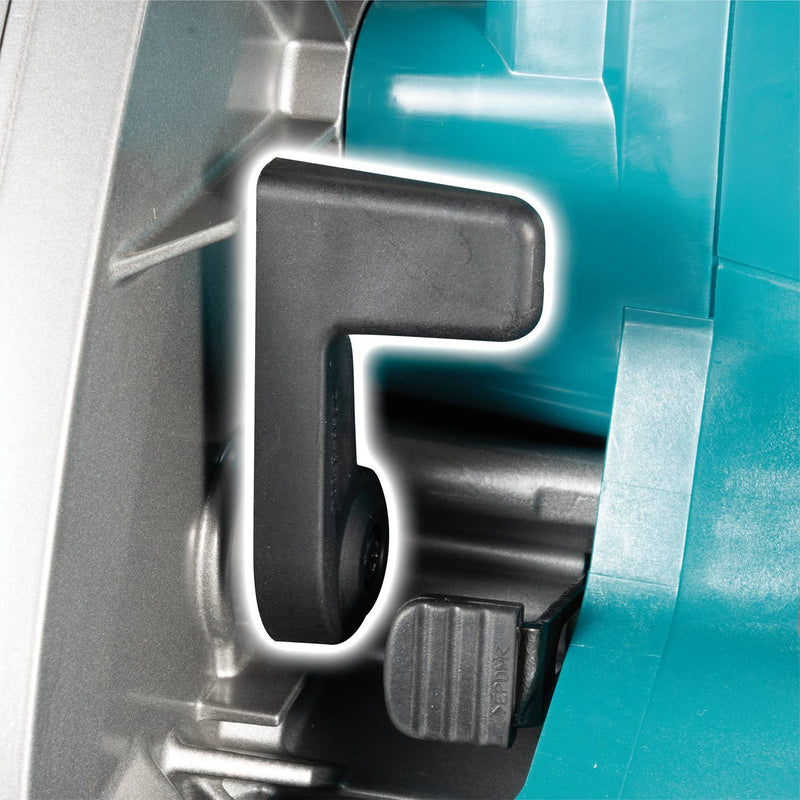

Onboard hex wrench for convenience
The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications (battery not included)
The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging (charger not included)
The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
Only use genuine Makita® Batteries and Chargers
3-year limited warranty
Blade Diameter : 10-1/4"
No Load Speed : 3,500 RPM
Max. Cutting Capacity (at 90°) : 3-13/16"
Max. Cutting Capacity (at 45°) : 2-11/16"
Max. Cutting Capacity (at 60°) : 1-7/8"
Arbor : 5/8"
Net Weight (with battery, sold separately) : 12.73 lbs.
Overall Length : 17-7/8"
System : 40V max XGT®
Power Type : Cordless
Automatic-start Wireless System (AWS®) : Capable (transmitter sold separately)
Packaged Depth (in) : 12.24"
Packaged Height (in) : 14.57"
Packaged Width (in) : 20.79"
Shipping Weight : 17.35 lbs.
UPC Code : 088381-760591
