Makita (XJP03Z) 18V LXT® Lithium-Ion Plate Joiner (Tool Only)

SKU XJP03Z
in stock
Original price $289.00
Original price $289.00 - Original price $289.00
Original price $289.00
Current price $289.00
$289.00 - $289.00
Current price $289.00
 More payment options

Pickup available at Pacific Power Tools (Orange)

Usually ready in 24 hours
  • Rack-and-pinion vertical fence system engineered for accurate fence adjustments

  • Cast aluminum pivot fence, positive stops at 0°, 45° and 90°, and easy centering on 3/4" material

  • Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes

  • Cast aluminum front body for added durability

  • INCLUDES : Tool only (battery and charger not included)

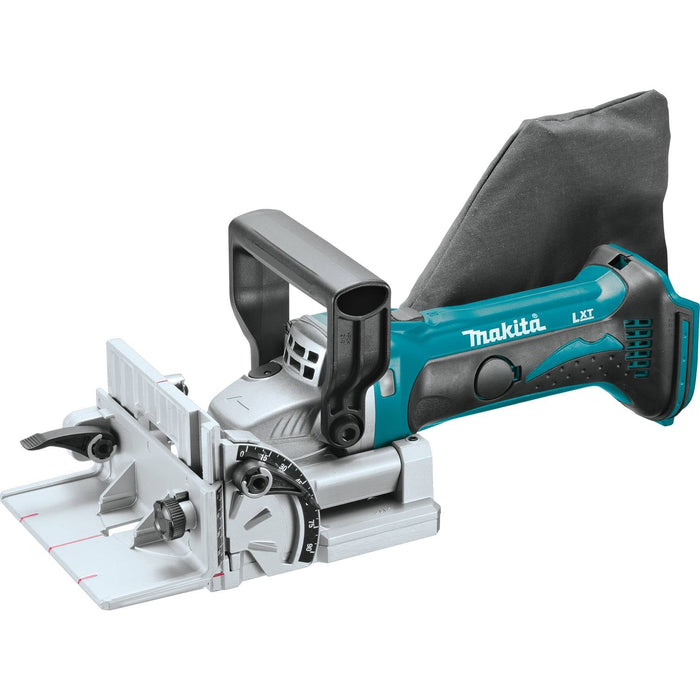

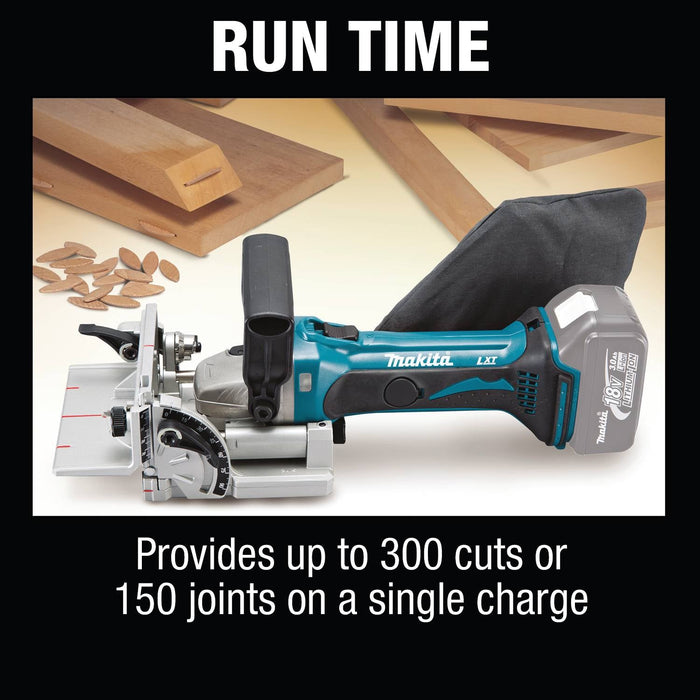

The Makita 18V LXT® Lithium-Ion Cordless Plate Joiner (model XJP03Z, tool only) provides portability and performance in the field or in the shop -- without the cord. The XJP03Z combines power and precision with ease-of-use features for strong and accurate biscuit joints for furniture making, cabinet construction and fine woodworking applications. (note: battery and charger sold separately). The XJP03Z provides up to 320 cuts or 160 joints on a single charge (18V LXT® 3.0Ah battery, sold separately) . The rack-and-pinion vertical fence system is engineered for accurate fence adjustments, and the cast aluminum pivot fence has three positive stops at 0 degrees, 45 degrees, and 90 degrees. The blade diameter is 4 inches, and there are six depth settings with one-touch stops for the most common biscuit sizes including #0, #10 and #20.



CA Prop 65 Warnings

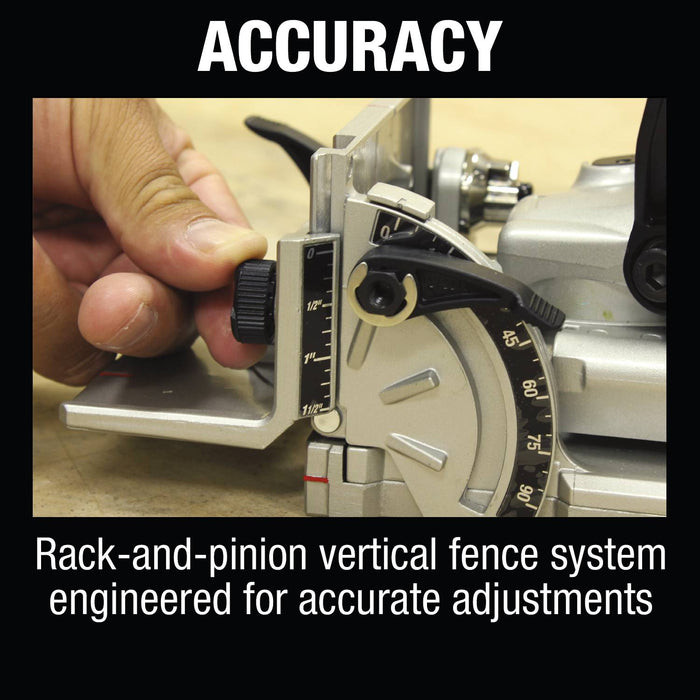

  • Rack-and-pinion vertical fence system engineered for accurate fence adjustments
  • Cast aluminum pivot fence with three positive stops at 0°, 45° and 90°, and easy centering on 3/4" material
  • Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes

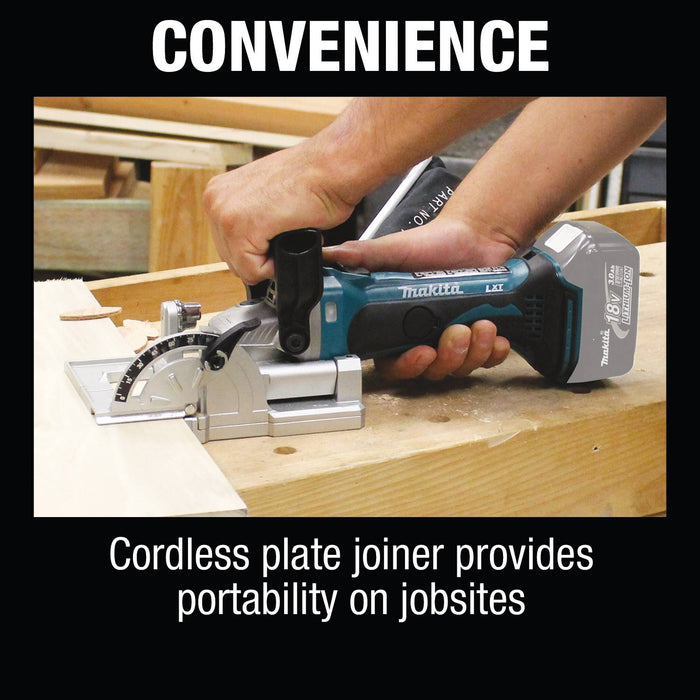

  • Cordless plate joiner provides portability and performance in the field or in the shop without the cord
  • Large and easy-to-operate cam locks for angle guide and fence adjustments
  • “Tool-less” blade cover and shaft lock for fast and easy blade changes
  • Non-marring rubber inserts on shoe engineered to prevent material from slipping
  • Cast aluminum front body for added durability
  • Slim and ergonomic body design for added comfort
  • Large top grip handle for improved handling
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
  • Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
  • 3-year limited warranty
  • Battery and charger sold separately
  • Only use genuine Makita batteries and chargers

Blade Diameter : 4"
Max. Cutting Depth : 3/4"
No Load Speed : 12,000 RPM
Overall Length : 13-3/4"
Net Weight (with battery) : 6.7 lbs.
Battery : 18V LXT® Lithium-Ion
Fits biscuit sizes #0, #10, #20 : Yes
Max. no load speed : 12,000 RPM
Power Type : Cordless
Form Factor (LXT) : 18V LXT®
Motor Type : Brushed
Packaged Depth (in) : 8.25"
Packaged Height (in) : 6.75"
Packaged Width (in) : 16"
Shipping Weight : 8.2 lbs.
UPC Code : 088381-678353

(1) 4" Carbide Tipped Blade for Plate Joiner (A-95118)

(1) Dust Bag (123150-5)

(1) Set Plate (415579-2)

(1) Lock Nut Wrench (782401-1)
